In global mining, oilfield exploration, and civil tunneling, structural integrity at the cutting edge determines the cost per foot of drilling operations. As mechanical exploration pushes into increasingly abrasive and deep geological strata, standard tool alloys face rapid degradation. The premature failure of a single cutting tooth leads to catastrophic bit wear, unscheduled string pulls, and escalating labor costs.
Selecting high-performance Tungsten Carbide Mining Buttons and Drilling Inserts is a critical engineering decision that directly impacts operational equipment efficiency (OEE). At Panda Carbide Technology CO., LTD., we engineering heavy-duty carbide teeth that resolve the industry's most punishing wear challenges, delivering the microstructural reliability required for high-impact percussive and rotary cutting systems.
1. Geometric Architecture: Matching Button Formulations to Rock Dynamics
How do different shapes of tungsten carbide buttons optimize rock crushing and shearing efficiency?

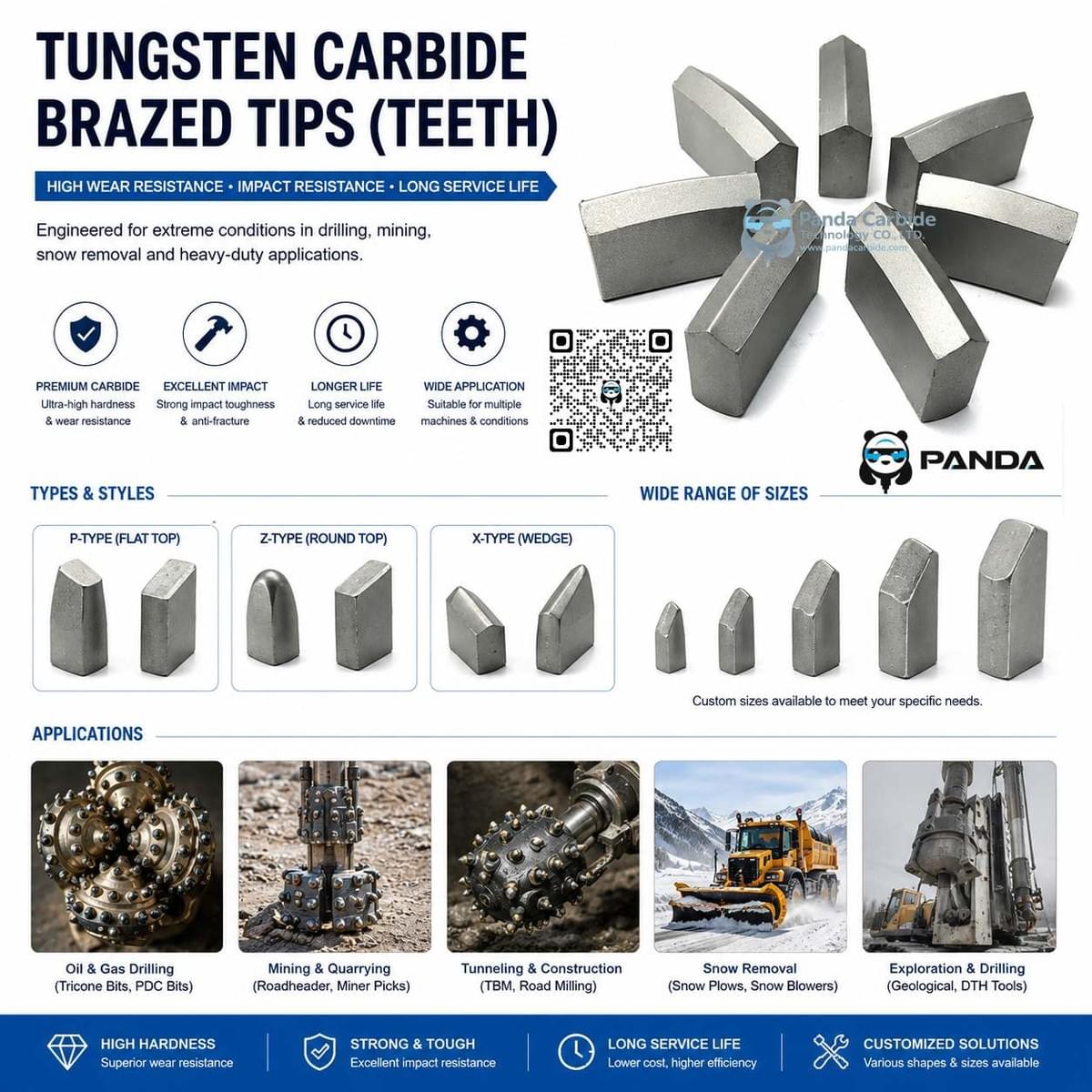

In advanced drilling mechanics, the profile of the carbide insert must be strictly matched to the geological formation:
- Z Style (Spherical / Round-Top Buttons): The global standard for hard to ultra-hard formations (such as quartzite and granite). The spherical radius provides maximum structural resistance against the massive axial impacts of Down-The-Hole (DTH) hammers, crushing rock through compressive force.
- X Style (Wedge / Chisel Buttons): Optimized for soft to medium-hard strata (such as shale, limestone, or sandstone). The sharp, wedge-like cutting profile leverages aggressive shearing mechanics, significantly increasing penetration rates (ROP) by carving through rock faces.
- P Style (Flat-Top Buttons): Specifically designed to be pressed into the gauge rows of rotary tricone bits. These inserts protect the outer diameter of the drill head, resisting intense peripheral abrasive friction to maintain a consistent hole size.
2. Overcoming Micro-Structural Fatigue in Extreme Environments
Whether your equipment is deploying continuous miners into underground coal seams, drilling deep oil wells, or clearing packed ice with municipal snow plow blades, the carbide matrix must withstand cyclic thermal and mechanical loading without micro-chipping.

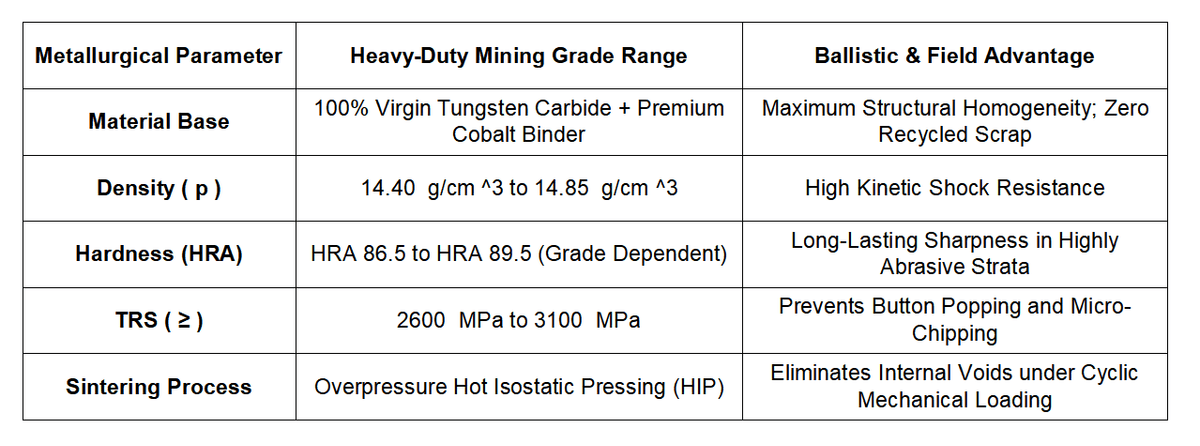

The 100% Virgin Material Guarantee
Using recycled scrap carbide introduces microscopic chemical impurities that compromise grain boundaries, leading to sudden, premature cracking under high impact. Panda Carbide builds its mining inserts using exclusively 100% virgin sub-micron and coarse-grained tungsten carbide powders. This guarantees absolute structural homogeneity across the entire production batch.
Overpressure HIP Sintering Technology
Every mining button we produce undergoes Hot Isostatic Pressing (HIP) sintering. By applying uniform hydrostatic pressure at peak sintering temperatures, we completely eliminate internal micro-porosity. This advanced metallurgical process maximizes the material's Transverse Rupture Strength (TRS to ≥ 3000 MPa ) and fracture toughness, allowing the inserts to absorb intense vibrations without catastrophic failure.
3. Technical FAQ: Optimizing Interference Fit and Longevity
Q: What is the optimal interference fit tolerance for press-fitting carbide buttons into DTH drill bodies?
A: To ensure reliable retention without stress-cracking the steel bit head, a precise interference fit tolerance (typically between 0.04 mm to 0.08 mm, depending on button diameter) must be maintained. Panda Carbide grinds all button bodies to a precision tolerance of +/- 0.002 mm , ensuring seamless automated press-fitting compatibility.
Q: Can these carbide inserts withstand the thermal shock of dry drilling and high-speed pavement milling?
A: Yes. By adjusting the cobalt binder distribution within our heavy-duty mining grades (typically 6 % to 12 % Co), we enhance the thermal fatigue threshold. This allows our inserts to maintain edge sharpness even when subjected to the intense frictional heat of dry asphalt milling or high-velocity snow plowing.
4. Cross-Industry Tooling and Heavy-Duty Systems
The advanced powder metallurgy and HIP sintering technology used to manufacture high-impact mining teeth also powers our extensive portfolio of industrial wear and cutting systems:
- Internal Link: For factories manufacturing downstream rotary tooling, explore our high-concentricity [Tungsten Carbide Rotary Burr Blanks].
- Internal Link: For specialized metal-cutting lines demanding extreme edge toughness, view our [Solid Carbide Roughing End Mills].
- External Link: [Refer to the global ISO standards for the grading and classification of hardmetals for mining and rock drilling applications.]
🏆 Secure Your Technical Edge with Panda Carbide Technology
At Panda Carbide Technology CO., LTD., we don't just supply raw inserts; we provide field-tested metallurgical solutions. By focusing on extreme fracture toughness, precise geometric tolerances, and zero-scrap manufacturing, our products dramatically reduce auxiliary labor hours and accelerate engineering progress for heavy-duty projects worldwide.
📩 Contact our B2B procurement desk today to request a comprehensive mining grade catalog or to submit custom technical drawings for prototype sample testing.
Panda Carbide - More Than Tough!
