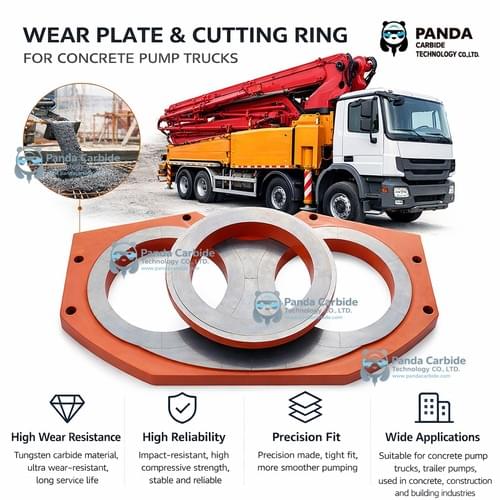

Heavy-Duty Concrete Pump Tungsten Carbide Wear Plate & Cutting Ring | Spectacle Plate | Wear Parts
$199.86
Engineered with our proprietary Impact-Resistant Carbide Grades, our components extend the service life of S-valves by 3x to 5x compared to standard steel, ensuring a perfect seal and preventing slurry leakage in the most demanding high-rise and infrastructure projects.
1. Technical Specifications
2. Strategic Engineering Features
Vacuum Brazing Technology: Our proprietary brazing process ensures a void-free bond between the carbide segments and the steel base, preventing carbide "pop-out" even under thermal expansion and high-frequency vibration.
Mirror-Finished Sealing Surface: The contact surfaces are ground to a mirror finish ( Ra ≤ 0.1 μm ) to ensure a zero-leakage seal, maintaining the hydraulic efficiency of the pump.
Optimized Grain Structure: Using Sub-micron Tungsten Carbide, our parts resist the "micro-plowing" effect of sharp sand and aggregate particles found in concrete.
Self-Sharpening Edge: The cutting ring is designed to maintain a sharp edge through its wear cycle, ensuring clean cuts of the concrete column during S-valve switching.
3. Application Scenarios & OEM Compatibility
A. High-Rise Construction & Megastructures
Challenge: Maintaining high pumping pressure over vertical distances.
Solution: Panda Carbide's Spectacle Plates ensure a tight seal that prevents pressure loss, widely used in skyscraper projects in Dubai, New York, and Shanghai.
B. Infrastructure & Bridge Engineering
Challenge: Large-volume, continuous pouring with abrasive river sand.
Solution: Our Heavy-Duty Cutting Rings are the standard for bridge foundations and dam construction in Southeast Asia and Europe.
C. OEM Replacement Compatibility
We provide 100% compatible wear parts for major brands:
Putzmeister
Schwing
Sany / Zoomlion
Junjin / KCP
CIFA
Sermac
Support OEM Custom, ect
4. Technical FAQ for Maintenance Managers
Q: When should I replace my concrete pump wear plate?
A: Replacement is recommended when the gap between the plate and ring exceeds the manufacturer's limit (typically 2-3mm) or when you notice a drop in pumping pressure and visible slurry leakage. Panda Carbide parts feature a "wear-indicator" design for easier maintenance scheduling.
Q: Why does tungsten carbide outperform induction-hardened steel?
A: While hardened steel only has a thin protective layer, our Tungsten Carbide inserts provide consistent hardness ( HRA 90+) throughout the entire thickness, offering superior ROI by significantly reducing downtime and labor costs for part changes.
5. Why Partner with Panda Carbide?
Precision Manufacturing: +/- 0.05mm tolerance for perfect fitment.
Customization: We produce bespoke plates based on your CAD drawings or physical samples.
Global Logistics: Rapid shipping to industrial hubs in Houston, Rotterdam, Brisbane, and Jakarta.
