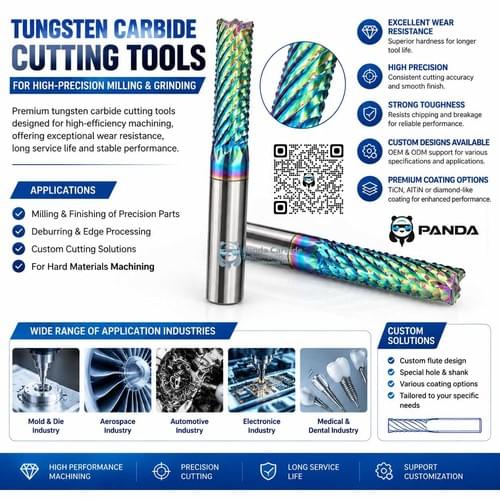

Rainbow/Nano-Coated Solid Tungsten Carbide End Mills for High-Precision CNC Milling & Hard Machining
$37.98
Product Overview:
Unlock extreme metal removal rates (MRR) and superior surface finish with Panda Carbide Technology’s Premium Rainbow & Nano-Coated Solid Tungsten Carbide End Mills. Engineered for high-efficiency milling, deburring, and finishing on 3/4/5-axis CNC machining centers, these high-performance cutting tools combine ultra-fine micrograin carbide substrates with advanced PVD surface coating technologies to eliminate tool vibration, reduce thermal stress, and drastically extend tool wear life.Designed to handle both non-ferrous alloys and difficult-to-cut hardened metals (up to HRC 65), our solid carbide end mills deliver consistent cutting accuracy ( ≤ +/- 0.005 mm ) across aerospace, automotive, medical/dental implant, and precision die & mold manufacturing operations.
⚠️ Core Unique Selling Proposition (USP): Advanced Substrates & Multi-Layer Coating Options
In high-speed CNC machining, friction heat and chip packing cause premature micro-chipping and flank wear. Panda Carbide’s cutting tools address these challenges through targeted metallurgical innovations:
Sub-Micron Virgin Carbide Substrate: Made strictly from 100 % virgin powder metallurgy with overpressure HIP Sintering, delivering high transverse rupture strength (TRS ≥ 3800 MPa ) and hardness up to HRA 92.5 - 93.5 to resist chipping under high-impact cutting feeds.
Advanced Surface Coating Portfolio:
Rainbow / NANO-Composite PVD Coating: Features an ultra-low coefficient of friction ( μ ≤ 0.2 ) and high thermal barrier stability (up to 1100 ° C ), ideal for high-speed dry milling of aluminum alloys, titanium, and stainless steels.
AlTiN / TiCN Coatings: High-hardness layers optimized for continuous heavy-duty milling of hardened mold steel.
DLC (Diamond-Like Carbon) Coating: Chemically inert surface specifically engineered to prevent cold welding and chip built-up edge (BUE) when machining non-ferrous materials.
Optimized Flute Geometry & Vibration Dampening: Variable helix angle and unequal index flute designs minimize regenerative chatter during heavy slotting and shoulder milling, guaranteeing surface roughness finishes down to Ra ≤ 0.2 μm .
1. Technical Specifications & Mechanical Tolerances
To meet global precision manufacturing standards, our solid carbide end mills are ground on 5-axis CNC tool grinders under multi-stage optical inspection:
2. Strategic Application Scenarios & Substrate Compatibility
Panda Carbide’s multi-flute end mills are built to perform across diverse industrial materials and high-value manufacturing hubs worldwide:
Die & Mold Industry: High-efficiency trochoidal milling and finishing of pre-hardened and hardened mold steels (P20, NAK80, H13, D2, up to HRC 65).
Aerospace & Turbomachinery: Deep cavity profiling and slotting in heat-resistant superalloys (Inconel 718, Hastelloy) and Aerospace-Grade Titanium Alloys (Ti-6Al-4V).
Medical & Dental Implants: Micro-milling and high-precision contouring of titanium dental screws, bone plates, and cobalt-chromium medical implants on Swiss-type lathes.
Automotive & 3C Electronics: High-speed deburring, edge processing, and fine slotting of aluminum castings, copper, and stainless steel housings.
3. Machining Recommendations & Cutting Parameters (Engineering Guide)
To maximize tool life and material removal rates, follow these recommended machining parameters based on your target workpiece material:
4. Advanced Technical Solutions & Engineering Guidelines
Q: What are the main performance advantages of Rainbow PVD Nano-Composite Coatings over traditional AlTiN coatings on carbide end mills?
A: (Surface Physics)While traditional AlTiN coatings provide good thermal protection for hard steel milling, the Rainbow PVD Nano-Composite Coating features an extremely low friction coefficient ( μ ≤ 0.2 ) combined with a multi-layered nanostructure. This low-friction surface prevents material adhesion (built-up edge/BUE) when machining sticky metals like titanium alloys, stainless steel, and aluminum. Furthermore, its smooth topography improves chip evacuation during deep slot milling, allowing CNC operators to increase cutting speeds by up to 30 % without compromising tool life.
Q: How does Panda Carbide guarantee tool concentricity and runout stability for Swiss-lathe and high-RPM machining?
A: Tool runout directly impacts cutter life and workpiece surface roughness. Panda Carbide end mills are precision-ground on 5-axis CNC grinding machines using super-abrasive diamond wheels. Every cutter shank is held to an h6 tolerance, and total radial runout is strictly controlled within ≤ 0.003 mm ( ≤ 3 μm ). This ultra-low runout ensures even chip loading across all cutting flutes, preventing premature micro-chipping during high-RPM light finishing passes.
5. Full OEM / ODM Customization & Blueprint Support
As a direct manufacturer, Panda Carbide Technology CO., LTD. provides complete custom cutting tool solutions tailored to your specific machining needs:
Custom Flute & Bevel Design: Tailored helix angles, corner radii, ball-nose profiles, and neck-relief lengths.
Special Shank Configurations: Weldon shanks, threaded shanks, or custom h5/h6 cylindrical shanks.
Tailored Thin-Film Coatings: Customized PVD/CVD coating choices based on localized cooling (air blow, flood coolant, MQL oil mist).
📩 Contact us today for bulk wholesale inquiries or custom requests.
Strict NDA Protection: Send us your 2D/3D CAD drawings (STEP, DWG, DXF) for instant technical review and rapid prototype production.
