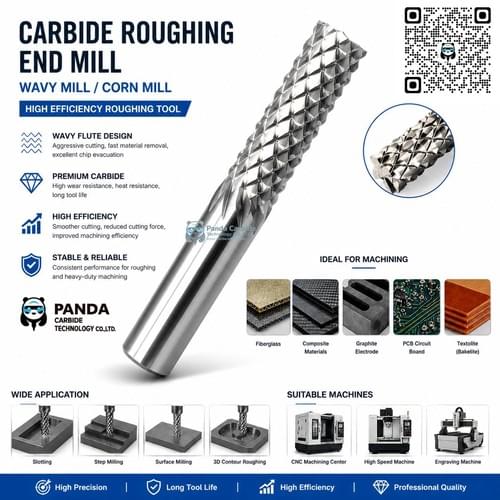

Solid Carbide Roughing End Mill | Wave Blade & Corn Cob Cutter for Composite, Graphite & PCB
$19.87
Whether you are performing deep slotting, stepping, or complex 3D roughing, our wave-profile geometry ensures a higher Metal Removal Rate (MRR) and a tool life that significantly outlasts conventional milling cutters.

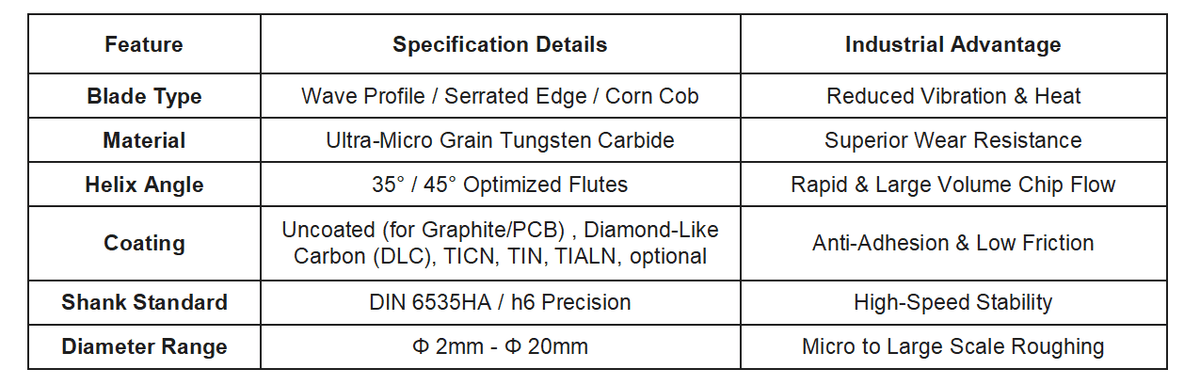

1. Technical Specifications
2. Application Scenarios & Material Recommendations
A. Aerospace & Marine Composites
Materials: Fiberglass (GFRP), Carbon Fiber (CFRP), G10/FR4 Epoxy Glass.
Performance: The serrated "Corn Cob" teeth shear through tough fibers without causing delamination or fraying.
B. Electronic & Semiconductor Industry
Materials: PCB Circuit Boards, CCL (Copper Clad Laminates).
Performance: High-speed routing with clean edges and zero clogging.
C. Mold & Die Industry
Materials: Graphite Electrodes, Textured Stone, Synthetic Resins.
Performance: Optimized for "dry machining" scenarios with massive chip evacuation requirements.
D. General CNC Machining
Scenarios: Slotting, Side Milling, Step Machining, and 3D Cavity Roughing on CNC Centers, High-Speed Machines, and Engraving Machines.
3. Technical Solutions & Machining Strategy
Q: Why choose a Roughing (Wave) End Mill over a standard one?
The serrated edge of a Roughing Cutter contacts the workpiece with multiple points, breaking the chip load. This allows for a higher Feed Rate and Depth of Cut (Ap) while minimizing spindle load.
Technical Strategies for Success:
Chip Evacuation: For graphite and PCB, ensure high-volume air blast or vacuum suction to handle the large volume of "dust-like" chips.
Tool Path: Use trochoidal milling paths for deep slots to maximize the wave blade's efficiency.
Stability: Best suited for high-rigidity CNC machines to fully leverage the high-speed removal capabilities.
4. Key Performance Advantages
High MRR (Metal Removal Rate): Achieves significantly higher volume removal per minute compared to flat end mills.
Large Flute Volume: Designed for "Large & Smooth" chip evacuation to prevent chip packing and tool breakage.
Extended Tool Life: Proprietary carbide grades provide a service life 30%-50% longer than standard industry alternatives in abrasive materials.
Heat Dissipation: The wave profile breaks the contact arc, reducing frictional heat and protecting the workpiece structure.
5. Why Buy from Panda Carbide?
Precision Control: Every tool is inspected via Zoller measuring systems for concentricity and profile accuracy.
Customization: Specialized diameters and lengths available for unique PCB or mold-making requirements.
Global Distribution: Fast shipping to manufacturing hubs in Shenzhen, Vietnam, Mexico, and Germany.
