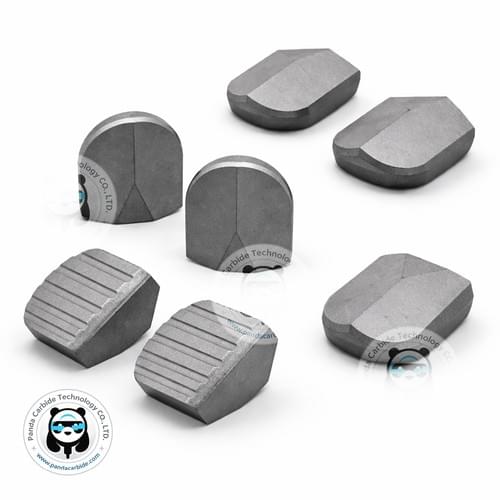

Heavy-Duty TBM Carbide Cutter Tips | Carbide Teeth for Shield Tunneling Machines |High-Impact Cutter
$19.87
Engineered with extra-coarse grain carbide and optimized cobalt binders, our TBM tips are designed to penetrate hard rock, abrasive soil, and mixed-face geology with maximum fracture resistance and minimal wear.
Твердосплавные вставки для ТМК

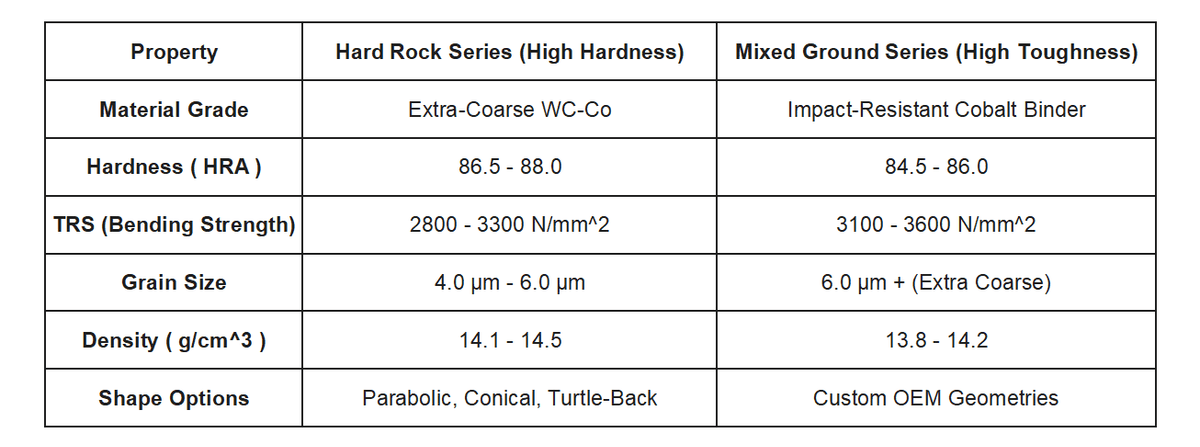

1. Technical Specifications
2. Strategic Engineering Features
Extra-Coarse Microstructure: Our unique sintering process creates a "cushioning" effect within the carbide matrix, allowing the teeth to absorb massive kinetic energy without catastrophic shattering.
Turtle-Back Geometry: Specifically designed for shield tunneling in mixed ground, the "Turtle-Back" shape provides superior lateral support, reducing the risk of shearing under high torque.
Optimized Brazing Interface: Large-scale TBM inserts feature a stress-relieved base to ensure a permanent bond with the steel cutter head, even under extreme thermal fluctuations.
Wear-Path Optimization: Geometrically engineered to maintain a constant "cutting profile" throughout the life of the tool, ensuring consistent penetration rates (ROP).
3. Application Scenarios & Geological Solutions
A. Hard Rock Boring (Granite, Gneiss, Basalt)
Challenge: Extreme abrasion and heat.
Technical Solution: We recommend our Panda Grade H10 with high density and thermal stability to maintain edge sharpness in the world’s deepest tunnel projects in Switzerland, Norway, and Western China.
B. Soft & Abrasive Ground (Sandstone, Silt, Gravel)
Challenge: Rapid erosion of the binder phase.
Technical Solution: Specialized Corrosion-Resistant Carbide that prevents the "washing away" of the cobalt matrix, common in subsea tunneling projects in Singapore and the UK.
C. Mixed-Face & Urban Shield Tunneling
Challenge: Frequent impact with boulders and varying soil density.
Technical Solution: Turtle-Back (Shield Teeth) designs that provide a wider footprint for stability, widely used in metro construction in Istanbul, Tokyo, and Riyadh.
4. Technical FAQ for Tunneling Engineers
Q: Why is coarse-grain carbide preferred for TBM cutters?
A: Unlike woodworking, tunneling requires high fracture toughness. Coarse grains hinder crack propagation, meaning a small micro-crack won't immediately lead to a broken tooth under the massive pressure of a shield machine.
Q: How do Panda Carbide tips handle the heat generated during dry boring?
A: Our TBM series is vacuum-sintered with rare-earth additives that improve thermal conductivity, allowing heat to dissipate faster into the cutter head and preventing thermal fatigue cracks.
5. Why Partner with Panda Carbide?
OEM & Customization: We support custom molding for all major TBM brands, including Herrenknecht, Robbins, and CREG.
Field-Proven Durability: Rigorously tested in high-pressure subsea and mountain-crossing projects globally.
Rapid Global Logistics: Secure packaging and air-freight options to major infrastructure hubs in Dubai, Houston, and Singapore.
