Tungsten Carbide Mechanical Seal Rings, Shaft Sleeves, Wear Components, Bushings & Thrust Washers
$37.98
As global processing plants enter the autumn machinery maintenance and procurement cycle, Panda Carbide Technology CO., LTD. delivers zero-leakage, micro-precision Tungsten Carbide Mechanical Seal Rings, Shaft Sleeves, Bushings, and Washers engineered to resist extreme abrasion, slurry erosion, and aggressive chemical corrosion.Formulated from 100 % virgin sub-micron tungsten carbide grains with Cobalt or Nickel binder matrices and consolidated via Overpressure HIP Sintering ( 1,450 °C ), our seal rings and shaft bushings achieve an ISO 4499 A00 porosity rating. Engineered with helium optical light band flatness ( 1 - 2 light bands ) and exceptional hardness ( 89.0 - 93.0 HRA ), Panda Carbide rotating parts eliminate liquid leakage, sleeve grooving, and unexpected pump failure under harsh operating conditions ( >10 MPa pressure, high RPM).
Target Keywords:
Tungsten carbide mechanical seal rings, carbide shaft sleeves, carbide bushings and washers, TC pump seal faces, Кольца трения из твердого сплава, Втулки из твердого сплава, Panda Carbide wear parts.
📩 Request a Free Quote
https://www.pandacarbide.com/contact-us

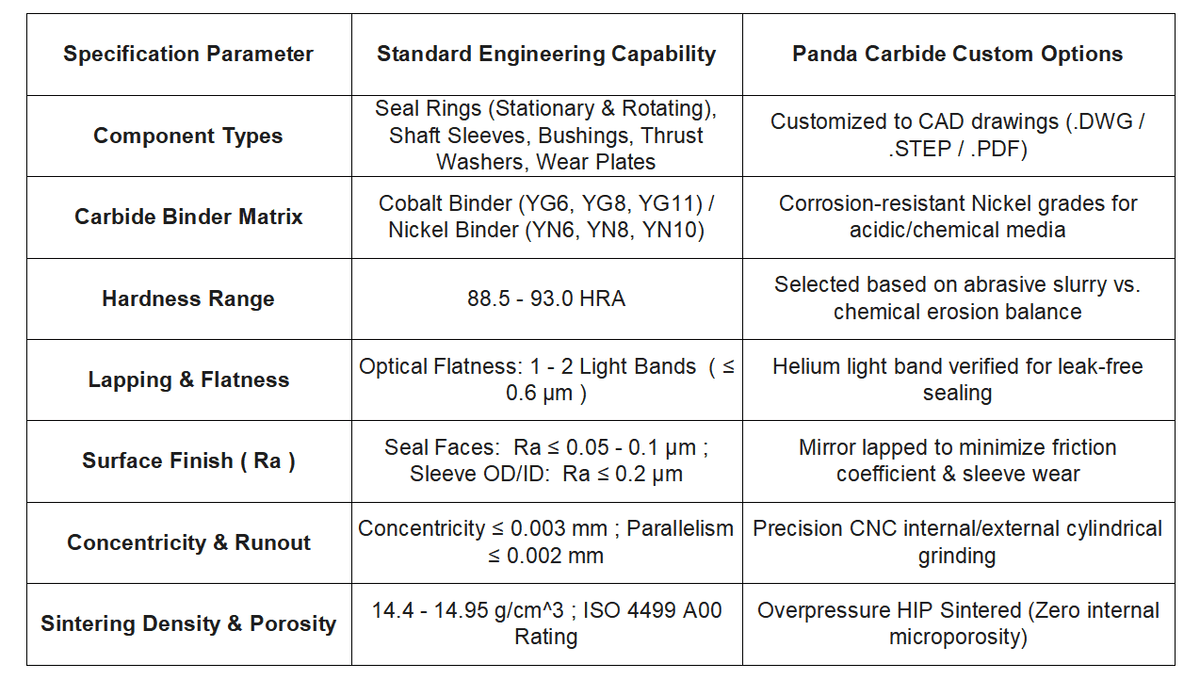

1. Technical Specifications & Custom Capabilities (Product Specs)

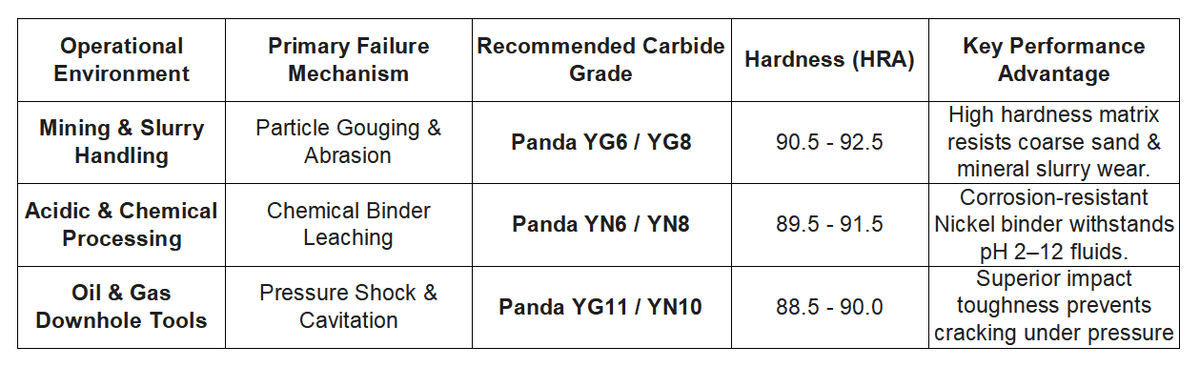

2. Material Recommendations & Carbide Grade Selection Guide
To prevent premature sleeve scoring, seal face heat checking, or chemical corrosion, Panda Carbide provides targeted grade selection:
For Abrasive Slurry, Mining & Mud Drilling Pumps (Heavy Wear Resistance):
Recommended Grade: Panda YG6 / YG8 (Cobalt Binder)
Key Advantage: High hardness ( 90.5 - 92.5 HRA ) and sub-micron grain structure resist sand particle gouging and cavitation erosion in severe slurry handling.
For Corrosive Chemical, Offshore Oil & Gas, and Acidic Fluid Processing:
Recommended Grade: Panda YN6 / YN8 / YN10 (Corrosion-Resistant Nickel Binder)
Key Advantage: Nickel binder matrix prevents binder leaching in acidic, alkaline, or saline environments ( pH 2 - 12 ), eliminating galvanic corrosion on seal faces.
3. Core Technical Advantages & Engineering Features
Overpressure HIP Sintered Structural Density: Sintered under high argon pressure at 1,450 °C to remove all internal micro-voids, guaranteeing zero fluid permeability under ultra-high pressure ( >15 MPa ).
Optical Band Lapping for Zero Leakage: Lapped on precision diamond plates to achieve helium optical band flatness, creating a tight fluid barrier that prevents fugitive emissions in slurry pumps and chemical agitators.
Superior Thermal Shock Resistance: Maintains dimensional stability and structural integrity under rapid temperature swings and high rotational speed ( >3,000 RPM ) without heat checking or micro-cracking.
4. Target Industries & Machinery Compatibility
Primary Industries:
Oil & Gas / Petrochemical Refineries (Downhole Mud Motors, Pipeline Pumps, Agitators)
Mining & Mineral Processing (Slurry Pumps, Hydrocyclones, Tailings Handling)
Chemical Processing & Wastewater Treatment (Corrosive Acid Pumps, Metering Pumps)
Power Generation & Desalination Plants (Boiler Feed Pumps, High-Pressure Valves)
Compatible Machinery:
Centrifugal Slurry Pumps (e.g., Warman, Sulzer, KSB)
Submersible Mud & Sewage Pumps (e.g., Flygt, Grundfos)
Rotary Mechanical Seals & Cartridge Seal Assemblies (e.g., John Crane, EagleBurgmann)
5. Technical Q&A
Q: Why are Nickel-binder tungsten carbide seal rings preferred over Cobalt-binder rings in chemical pump applications?
A: In chemical and offshore applications containing acids, salt water, or corrosive media, Cobalt binder matrices undergo binder leaching, leaving a porous tungsten carbide surface that degrades rapidly. Nickel-binder tungsten carbide seal rings (such as Panda YN6/YN8) from Panda Carbide Technology CO., LTD. provide superior chemical stability across a wide pH range (pH 2 - 12 ), preventing galvanic corrosion while maintaining high wear resistance ( 89.5 - 92.0 HRA ) and helium light band optical flatness.
Q: How does overpressure HIP sintering extend the service life of tungsten carbide shaft sleeves in slurry pumps?
A: Slurry pumps operate under heavy abrasive particle impact and fluid pressure. Standard atmospheric sintered carbide sleeves often contain microscopic voids that act as stress concentration points, leading to pitting and premature sleeve grooving. Overpressure HIP sintering ( 1,450°C ) eliminates all micro-porosity (achieving an ISO 4499 A00 rating), ensuring 100 % material density, maximum transverse rupture strength ( >2,800 MPa ), and up to 8X to 12X longer service life than stainless steel or ceramic sleeves.
6. Call to Action (CTA)
Optimize Your Rotating Equipment Uptime Today!
Suffering from frequent pump seal failure, sleeve grooving, or chemical leakage? Panda Carbide Technology CO., LTD. provides complete OEM/ODM customized manufacturing according to your CAD drawings (.DWG / .STEP / .PDF).
📩 Request a Free Quote
https://www.pandacarbide.com/contact-us
Contact our engineering sales team today for rapid B2B quotations and technical material consultations!
