Ultra-Precision Carbide Circular Slitting Knives for Lithium-Ion Battery Cathode & Anode Electrodes
$37.98
Product Overview
Achieve zero-burr edge consistency and prevent short-circuit risks in modern EV power cell and 3C digital battery manufacturing with Panda Carbide’s Ultra-Precision Tungsten Carbide Circular Slitting Knives. Specially designed as paired top and bottom (male and female) rotary shearing systems, these ultra-dense carbide slitting wheels execute clean, high-speed longitudinal separating across delicate aluminum cathode foils (with LFP/NMC slurry coatings) and copper anode foils (with graphite coatings).
Engineered from ultra-fine grain tungsten carbide matrix and available with optional advanced TiCN (Titanium Carbonitride) or DLC (Diamond-Like Carbon) coatings, our electrode slitting knives permanently mitigate the industry's biggest manufacturing failure: cold welding (material adhesion) on the cutting land, ensuring extended blade wear life and superior slitting geometry.
⚠️ Core Unique Selling Proposition (USP): Micron-Level Defect Elimination & Anti-Cold Welding Technology
In lithium battery production, even sub-10-micron burrs or coating flakes can puncture the separator film, causing catastrophic thermal runaway. Traditional carbide blades suffer from slurry particle accumulation and metal foil cold welding at high shearing velocities.
Panda Carbide completely resolves these failure modes:
Micron-Level Edge Defect Control: Our cutting edges are inspected under high-magnification optical profile systems to enforce edge defects ≤ 1.0 μm . This guarantees smooth shearing, eliminates coating delamination, and slashes edge burrs to absolute minimum levels.
Sub-Micron Flatness & Axial Tracking: Processed on specialized ultra-precision lapping systems, our slitting wheels maintain parallelism and flatness down to ≤ 0.001 mm ( ≤ 1.0 μm ) across the entire lateral flank. This erases axial gap variation between the top and bottom knife sets during continuous rotation.
Engineered Anti-Cold-Welding Bevel Finish: Through proprietary precision land-grinding technology, the cutting edge bevel features an ultra-low surface roughness ( Ra≤ 0.02 μm ). This mirror-finish reduces friction heat, preventing soft copper or aluminum micro-particles from fusing onto the cutting tip (cold welding).

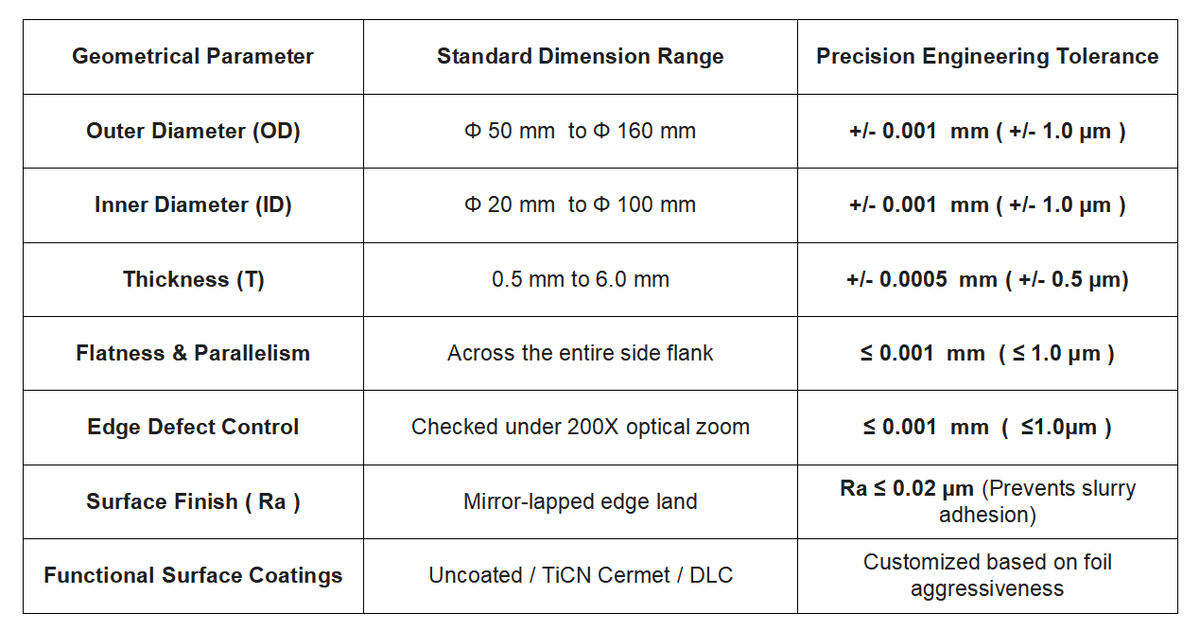

1. Technical Specifications & Mechanical Tolerances
To meet the stringent cleanroom manufacturing standards of global Giga-factories, our electrode slitting knives conform to sub-micron tolerances:
Top & Bottom Paired System: We supply matched sets of male upper shear blades and female lower spacer sleeves to ensure exact clearance alignment on automated shearing shafts.
2. Strategic Application Scenarios & Substrate Compatibility
Panda Carbide’s battery electrode circular knives are engineered for continuous high-speed slitting across modern battery chemistry lines:
EV Power Battery Cathode Slitting: Clean shearing of aluminum foils ( 10 μm to 15 μm ) coated with LFP (Lithium Iron Phosphate) or High-Nickel NMC slurries.
Anode Electrode Slitting: Burr-free separation of copper foils ( 4.5 μm to 8 μm ) coated with synthetic graphite or silicon-carbon anode materials.
3C Digital & Solid-State Battery Foil Converting: High-precision micro-slitting for ultra-thin consumer cell foils and next-generation solid-state cell current collectors.
3. Advanced Technical Solutions & Engineering Guidelines
Q: How does DLC (Diamond-Like Carbon) coating prevent cold welding and extend the service life of cathode/anode slitting blades?
A (Material Surface Physics): During the continuous shearing of copper and aluminum current collectors, high localized contact pressure and frictional heat cause soft metal micro-grains to adhere to the steel/carbide cutting edge—a phenomenon known as cold welding or galling.
Panda Carbide's optional DLC Coating deposits an amorphous carbon film with extremely low friction coefficient ( μ ≤ 0.1 ) and ultra-high micro-hardness ( ≥ 3000 HV ). This chemically inert layer prevents direct metallic contact between the blade edge and the metal foil, completely eliminating cold welding. As a result, tool lifespan is extended by 3 to 5 times while maintaining burr-free edge quality across millions of linear meters.
Q: Why is sub-micron flatness ( ≤ 1.0 μm ) critical for top and bottom slitting knives in battery electrode production?
A: In rotary shearing systems, the cutting clearance gap between the upper and lower circular knives must remain constant (typically 10 % to 15 % of the foil thickness). If a blade possesses flatness deviations greater than 2 μm , the axial gap will oscillate as the knives rotate. This gap fluctuation causes localized foil stretching, severe edge burrs, slurry flaking, and premature blade chipping. Panda Carbide’s sub-micron lapping guarantees dynamic gap stability, eliminating localized burr spikes.
4. Global Equipment Retrofitting & Supply Chain Reliability
Our precision battery slitting wheels serve as drop-in replacement components for leading global battery production machinery, including Wuxi Lead, Nishimura, Toray, CAC, PNT, and Katsukawa.
Strict Technical NDA Protocols: We recognize the proprietary nature of battery cell dimensions. All custom technical drawings, inner bore tolerances, and bevel angle specs shared with our engineering team are protected under legally binding B2B Non-Disclosure Compliance protocols.
