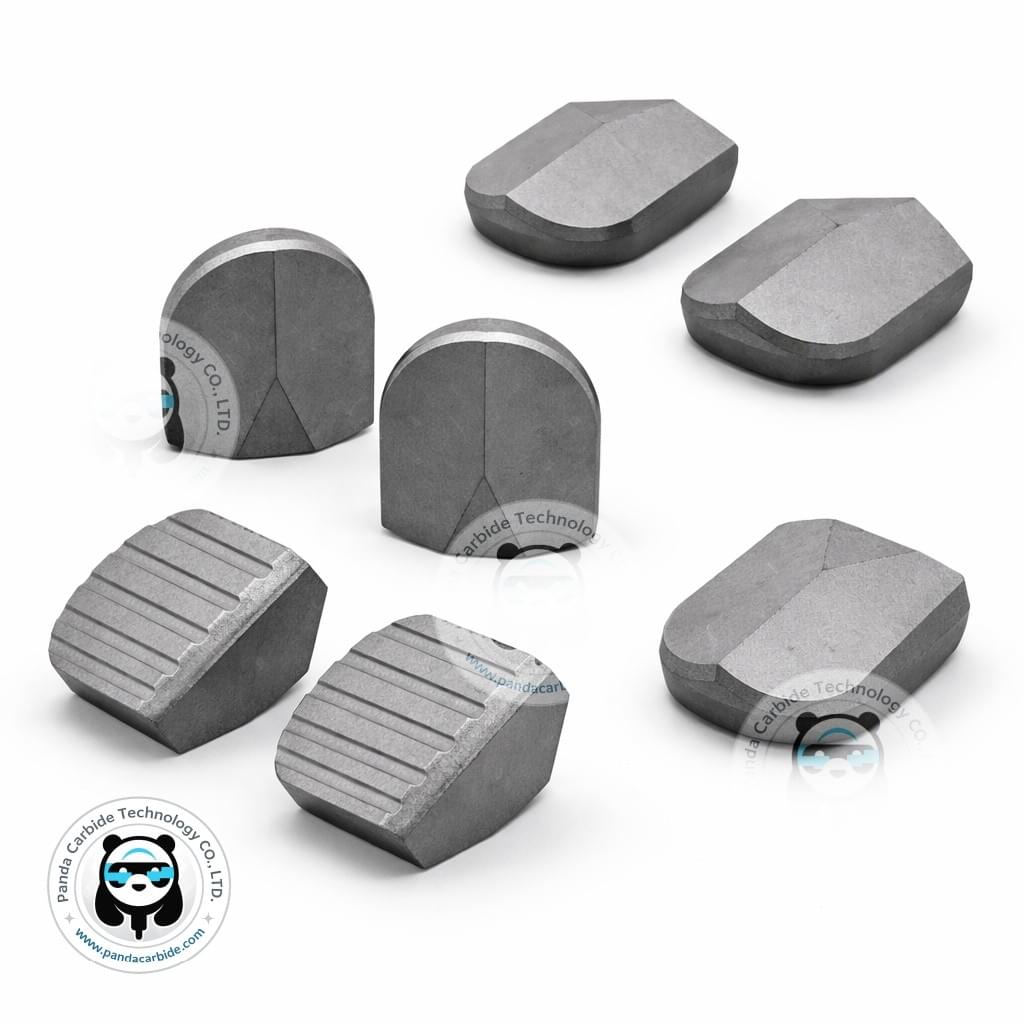

In the global infrastructure boom of 2026, the success of a multi-billion dollar tunnel project hinges on components just a few centimeters wide. TBM Carbide Cutter Tips (often referred to in the industry as "Turtle-Back" or "Shield Teeth") are the frontline warriors against the world’s most abrasive geologies.
At Panda Carbide Technology CO., LTD., we don't just manufacture inserts; we engineer geological solutions that maximize ROP (Rate of Penetration) and minimize expensive cutter head interventions.
1. The Material Science of Impact: Why Coarse Grain Wins
Why is coarse-grain tungsten carbide essential for TBM cutters?
In tunneling, the primary failure mode isn't just wear—it's catastrophic fracturing.
- Fracture Toughness ( K_{1C}): By utilizing an extra-coarse grain matrix ( ≥ 6.0 μm ), Panda Carbide creates a "crack-blunting" effect. When a cutter hits a granite boulder at high velocity, the coarse structure absorbs the kinetic energy, preventing micro-cracks from propagating into a full shatter.
- Cobalt Binder Optimization: Our TBM series features a specialized cobalt-rich binder (10%-15%) that provides the necessary "elasticity" to the carbide matrix, acting as a shock absorber for the shield machine's cutter head.
2. Specialized Geometries: The "Turtle-Back" Advantage
Search queries for "Turtle-Back carbide teeth for TBM" and "Shield tunneling cutter reinforcement" are peaking as urban metro projects expand.
The "Turtle-Back" (龟背齿) Design
The specialized curvature of the turtle-back geometry is not aesthetic—it is functional. This shape provides:
- Lateral Support: Superior resistance to side-loading forces common in mixed-face tunneling (shifting between soft soil and hard rock).
- Wear Path Distribution: The wide profile ensures that the wear is distributed evenly, maintaining the cutting height for longer periods.
- Brazing Reliability: A larger base surface area ensures a maximum metallurgical bond with the steel cutter body, vital for high-torque environments.
3. GEO-Strategic Applications: From Riyadh to Zurich
Panda Carbide’s tunneling tools are optimized for the world’s most challenging megaprojects:
- Hard Rock Boring (Norway & Switzerland): High-density carbide inserts for double-shield TBMs tackling Gneiss and Quartzite.
- Mixed-Ground Metro Projects (Singapore, Riyadh, & Istanbul): "Turtle-Back" teeth designed for Earth Pressure Balance (EPB) machines operating in abrasive sand and clay with occasional boulders.
- Subsea Tunneling (UK & Hong Kong): Corrosion-resistant carbide grades that prevent binder leaching in saltwater-saturated environments.
4. Technical FAQ: Maximizing TBM Cutter Life
Q: How do you prevent "thermal cracking" in TBM carbide tips?
A: Thermal cracks occur during rapid heating and cooling cycles in dry boring. Panda Carbide utilizes vacuum-sintering with rare-earth additives to improve thermal conductivity, allowing the tip to dissipate heat faster into the cutter ring.
Q: What is the ideal interference fit for TBM inserts?
A: Depending on the cutter head material, we recommend a precision interference fit calculated by:
δ = D * ( α_{steel} - α_{carbide}) * Δ T + C
(Where C is the safety constant for high-impact loads. Our engineering team provides custom fit charts for all OEM brands.)
5. Strategic Partnering with Panda Carbide
Reliability in tunneling requires a holistic approach to wear protection:
- Internal Link: Protect your TBM's hydraulic motor shafts with our [Carbide Sleeves & Bushings].
- Internal Link: For precision machining of the cutter head seats, explore our [Solid Carbide End Mills].
- External Link: [Consult the International Tunnelling and Underground Space Association (ITA) for 2026 safety and performance standards.]
🏮 2026: Boring Deeper, Faster, and Stronger
As the Year of the Horse drives the global economy forward, Panda Carbide Technology remains committed to providing the "Teeth" that build the world's future.
📩 Contact us today for a Geological Grade Analysis or a custom quote for your TBM fleet.
Panda Carbide - More Than Tough!
