In heavy-duty surface preparation—such as shipyard hull rust removal, structural steel recoating, and foundry casting cleaning—unscheduled downtime eats directly into contractor margins. During high-pressure abrasive blasting ( 70 - 115 PSI ), the blast nozzle is subject to violent abrasive shear and frequent mechanical shock.
Industrial blasting operators face three major operational pain points with traditional threaded nozzles:
- Thread Jamming & Media Seizure: Abrasive dust particles enter nozzle threads, causing threads to lock up and forcing workers to destroy fittings during nozzle changes.
- Ceramic Liner Cracking from Drops: Hard carbide liners (Boron Carbide, Silicon Carbide) are inherently brittle; dropping a nozzle onto steel decks or concrete floors shatters unjacketed liners instantly.
- Rapid Bore Expansion & Air Loss: Low-grade liners wear out rapidly, enlarging the orifice bore. An enlarged bore consumes up to 30 % more compressed air, starving the air compressor and dropping blast pressure below effective blasting velocity.

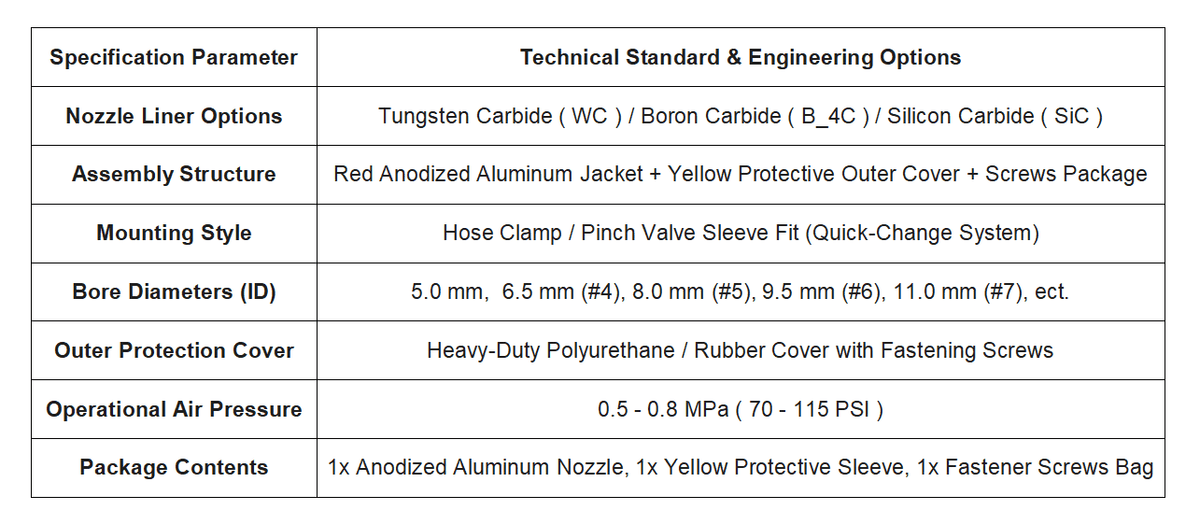

To eliminate these job-site bottlenecks, Panda Carbide Technology CO., LTD. manufactures high-durability Pinch Valve Sandblasting Nozzle Assemblies (Hose Clamp Sleeve Nozzles) with interchangeable Tungsten Carbide ( WC ), Boron Carbide ( B_4C ), and Silicon Carbide ( SiC ) liners.
1. Dual-Layer Protective Assembly & Mechanical Design
How does a jacketed pinch valve nozzle assembly protect brittle carbide liners from impact damage?
Panda Carbide's sleeve nozzle assembly integrates a dual-layer shock-absorption system.
Inner Anodized Red Aluminum Jacket: Encases the precision carbide liner, providing structural alignment and distributing thermal and mechanical stress evenly.
Outer Yellow Polyurethane/Rubber Protective Cover: Secured via a dedicated screws package, the outer sleeve acts as a heavy-duty bumper that absorbs drop impacts when workers drop blast guns on hard surfaces.
Threadless Clamp-Sleeve Mounting: Allows operators to slide the nozzle directly into pinch valves or hose couplings without relying on threaded joints, eliminating media jamming during quick nozzle swaps.

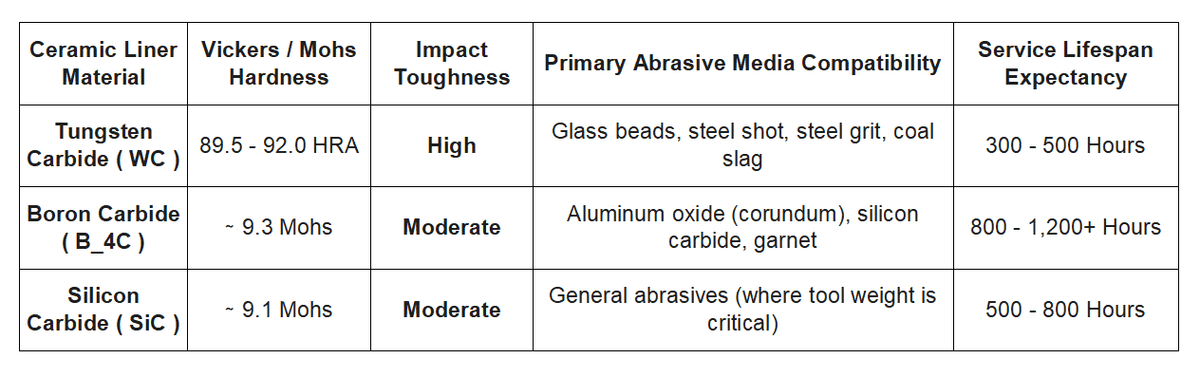

2. Liner Material Selection Guide: WC vs. B4C vs. SiC
To optimize cost-per-blasting-hour across shipyards and steel fabrication shops in North America, Europe, the Middle East, and Asia-Pacific, selecting the correct liner ceramic matrix is essential:
Boron Carbide ( B_4C ): Second in hardness only to diamond. Ideal for aggressive sharp-edged media like aluminum oxide or garnet. Delivers up to 3X - 5X longer lifespan than tungsten carbide.
Tungsten Carbide ( WC ): Offers maximum fracture toughness, resisting mechanical breakage when blasting with heavy steel shot or grit.
Silicon Carbide ( SiC ): Lightweight matrix reduces hand and wrist strain during long 12-hour manual blasting shifts in blast rooms.
3. Technical FAQ for Surface Preparation Engineers
Q: How does a pinch valve sandblasting nozzle assembly improve blast room productivity compared to threaded nozzles?
A: Pinch valve sandblasting nozzle assemblies from Panda Carbide Technology CO., LTD. utilize a clamp-sleeve mounting design encased in a protective outer jacket. This eliminates thread binding and media jamming common in threaded nozzles, allowing quick-change replacements in seconds. The outer shock-absorbing sleeve prevents internal tungsten, boron, or silicon carbide liners from fracturing if dropped on hard concrete floors.
4. Cross-Industry Tooling Synergy
Our advanced powder metallurgy and wear-resistant materials power a complete matrix of industrial tooling solutions:
- Internal Link: For rotating fluid handling and zero-leakage pumping, view our [Tungsten Carbide Mechanical Seal Rings, Shaft Sleeves & Bushings].
- Internal Link: For high-impact material handling and chute lining, explore our [Tungsten Carbide Serrated Wear Plates & Corrugated Gripper Liners].
- External Link: Review standardized surface preparation and blast cleaning cleanliness grades defined by [SSPC / NACE Surface Preparation Standards].
🏆 Partner with Panda Carbide Technology CO., LTD.
Stop wasting money on cracked liners and stuck nozzle threads. Upgrade your surface preparation rigs with custom pinch valve sandblasting nozzle assemblies built for maximum wear resistance, drop protection, and rapid nozzle changes.
📩 Submit your nozzle specifications or sleeve dimensions to our engineering team today for a rapid B2B quotation!
Panda Carbide - More Than Tough!
