In high-impact material handling, mining extraction, and heavy automated manufacturing, equipment components face continuous mechanical degradation. Material transfer chutes, crushers, and paper/metal gripping machinery are subjected to extreme sliding friction, impact shocks, and severe surface wear.
When conventional hardened tool steels or bimetallic wear plates fail under these rigorous operating conditions, industrial operators encounter two costly failure modes:
- Severe Abrasion & Chute Wall Perforation: Sliding mineral ores, cement aggregates, or abrasive slurries rapidly erode standard metal liners, causing material leakage, structural damage, and unscheduled line shutdowns.
- Clamping Slippage & Surface Damage: In automated paper splicers, steel tube cold drawing units, and testing fixtures, worn steel gripping jaws lose their friction bite. This leads to material slippage, pitch drift, and ruined workpieces.
To resolve these severe wear and friction challenges, Panda Carbide Technology CO., LTD. engineers specialized Tungsten Carbide Serrated Wear Plates, Corrugated Gripper Liners, and Anti-Slip Wear Strips.
1. Metallurgy for Extreme Impact and Abrasion Resistance
Why do tungsten carbide serrated wear plates outlast hardened steel liners by up to 15X?
Component service life depends directly on binder density, carbide grain size, and sintering integrity.
Panda Carbide optimizes powder metallurgy to withstand both heavy drop impact and continuous sliding wear:
- 100% Virgin Powder Matrix: Eliminates recycled scrap impurities, ensuring uniform Cobalt distribution and maximum fracture toughness ( K_IC ).
- Overpressure HIP Sintering ( 1450°C ): Consolidated under high argon gas pressure to achieve an A00 porosity rating according to ISO 4499. Removing micro-voids prevents micro-fissures from initiating during heavy mineral impact.

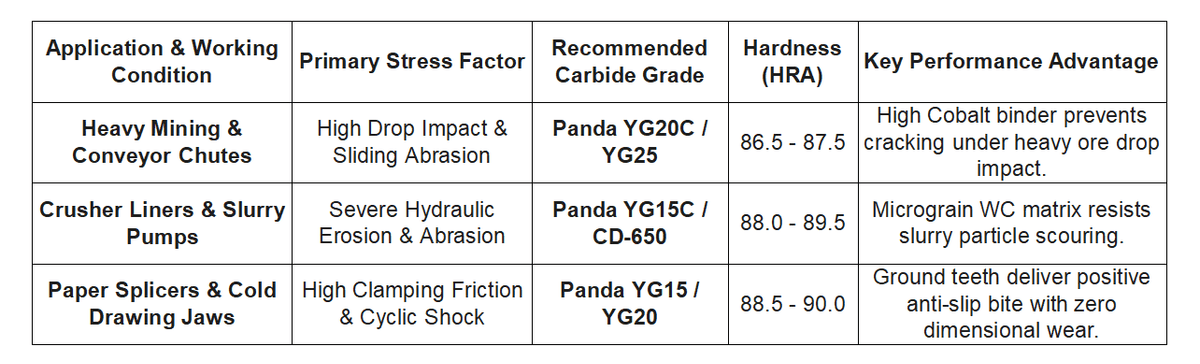

- Tailored Cobalt Binder Content: High Cobalt grades (YG20C / YG25 with 15 % - 25 % Cobalt) provide shock absorption for crusher chutes, while medium-grain grades (YG15 / YG20) offer high hardness ( 88.0 - 89.5 HRA ) for precision gripping teeth.
2. Precision Machining & Structural Engineering
To maintain secure mechanical fastening and positive friction bite across global mining and packaging facilities, wear plates require exact profile geometry:
- Precision Ground Serrated Profile: Longitudinal wave teeth and serrations are ground to tight tolerances ( +/- 0.005 mm), ensuring uniform load distribution and positive anti-slip engagement without piercing sensitive materials.
- Precision Countersunk Bolt Holes: Mounting holes are precision machined with exact chamfers, allowing mounting bolt heads to sit completely flush with or below the carbide surface. This protects bolt heads from sliding abrasive streams.
- Honed Tooth Tip Finish: Serrated teeth edges undergo micro-honing to remove razor-sharp stress concentrators, preventing tooth micro-chipping under cyclic clamping forces.
3. Technical FAQ for Industrial Engineers
Q: How do countersunk mounting holes on carbide wear plates prevent premature fastener failure in conveyor chutes?
A: In high-velocity bulk material handling, exposed bolt heads wear away quickly under sliding abrasive streams, causing liners to loosen or detach. Panda Carbide precision-machines countersunk holes into carbide wear plates, allowing alloy steel mounting bolts to sit completely flush below the wear surface. This shields bolt heads from abrasive streams and eliminates stress risers around hole perimeters, preventing carbide cracking during heavy vibration.
4. Cross-Industry Tooling Synergy
Our advanced powder metallurgy and precision finishing power a full range of high-performance wear components:
- Internal Link: For high-precision internal forming tools, explore our [Tungsten Carbide Internal Spline Extrusion Dies & Cold Heading Sleeves].
- Internal Link: For zero-leakage wiping and high-speed film cutting, view our [Tungsten Carbide Ink Cup Doctor Rings & Circular Slitter Blades].
- External Link: Review standard microstructural specifications and hardmetal testing standards established by [ISO 4499 Hardmetals Microstructure Specifications].
🏆 Partner with Panda Carbide Technology CO., LTD.
Eliminate material leakage, chute perforation, and clamping slippage on your production lines. Upgrade your heavy machinery with custom tungsten carbide serrated wear plates and corrugated gripper liners. Combining 100 % virgin micrograin powders with overpressure HIP sintering, Panda Carbide Technology CO., LTD. delivers long-term durability for global industrial operations.
📩 Submit your CAD drawings or component specifications to our engineering team today for a rapid B2B quotation!
Panda Carbide - More Than Tough!
