In modern high-speed CNC machining—especially during the deep-hole drilling of aerospace titanium alloys, automotive engine blocks, and hardened die steels—thermal management at the cutting edge is the single most critical factor determining tool life. Standard solid carbide tools relying on external flood coolant often fail because centrifugal forces and chip congestion prevent cutting fluid from reaching the tool tip.
When machining tough materials like Inconel 718 or Ti-6Al-4V, tool manufacturers face three severe operational challenges:
- Thermal Shock and Edge Micro-Chipping: External cooling creates extreme temperature fluctuations at the cutting zone, inducing thermal stress cracks and micro-chipping on drill margins.
- Chip Jamming and Flute Clogging: In deep holes ( >10D ), long, stringy chips bind within tool flutes, resulting in catastrophic drill breakage and ruined workpieces.
- Internal Channel Wall Variations in Low-Grade Rods: Inferior carbide coolant rods with inconsistent internal hole pitch or uneven wall thickness rupture under high-pressure coolant pumps ( >70 bar ).
To solve these high-performance machining bottlenecks, Panda Carbide Technology CO., LTD. engineers precision Solid Tungsten Carbide Coolant Hole Rods with Straight and Helical Internal Coolant Channels.
1. Co-Extrusion and Micro-Grain Metallurgy
Why do sub-micron carbide rods with internal coolant channels outperform standard solid rods in deep-hole drilling?
Panda Carbide controls every metallurgical variable to guarantee consistent tool grinding performance:
- Sub-Micron Grain Structure ( 0.4 - 0.8 μm ): Formulated from 100 % virgin tungsten carbide powder, providing extreme edge wear resistance combined with exceptional flexural strength.
- Precision Co-Extrusion Technology: Internal coolant channels (2-hole, 3-hole, 6-hole, and multi-hole pitch circles) are co-extruded during green-state shaping. This guarantees perfectly parallel hole alignment, uniform outer wall thickness, and zero internal fluid restriction.
- Overpressure HIP Sintering ( 1,450°C ): Sintered under high argon pressure to achieve an ISO 4499 A00 porosity rating, eliminating internal micro-voids and preventing high-pressure coolant leakage through the rod body.
2. Coolant Hole Geometry & Machining Applications

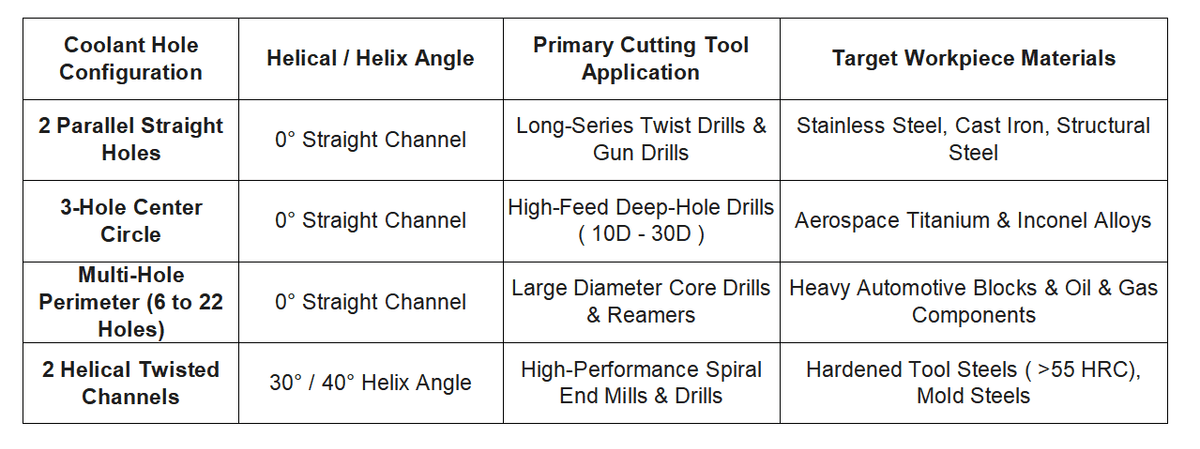

To serve leading CNC tool grinding facilities across North America, Europe, and Asia-Pacific, Panda Carbide offers tailored internal channel configurations:
3. Technical FAQ for Tool Manufacturers
Q: Why are multi-hole internal coolant carbide rods preferred over solid rods for high-speed drilling of titanium alloys?
A: Drilling titanium alloys (Ti-6Al-4V) generates extreme localized heat and long, gummy chips. Solid carbide rods rely on external flood coolant, which cannot reach the drill point in deep holes. Multi-hole internal coolant carbide rods from Panda Carbide Technology CO., LTD. deliver high-pressure cutting fluid directly through the tool body to the cutting edge. This rapidly reduces cutting temperatures, breaks chips for easy evacuation, and extends tool service life by up to 300 % .
4. Cross-Industry Tooling Synergy
Our advanced powder metallurgy and precision sintering capabilities power a comprehensive portfolio of industrial wear and cutting solutions:
- Internal Link: For high-precision metal stamping, punching, and fastener tooling, explore our [Tungsten Carbide Dies, Punches & Stamping Tooling Blanks].
- Internal Link: For food-grade pump seals and high-purity fluid handling, view our [Sanitary & Food-Grade Tungsten Carbide Bushings, Shaft Sleeves & Step Sleeves].
- External Link: Review standardized ISO cutting tool classifications and grinding specifications defined by the International Organization for Standardization (ISO Cutting Tools).
🏆 Partner with Panda Carbide Technology CO., LTD.
Elevate your CNC tool grinding consistency and eliminate internal channel defects. Upgrade your drill and end mill manufacturing lines with custom tungsten carbide coolant hole rods engineered for extreme strength, precision h6 / h5 tolerances, and maximum coolant pressure.
📩 Submit your rod dimensions, hole pitch requirements, or CAD drawings to our engineering team today for a rapid B2B quotation!
