As industrial manufacturers around the globe prepare for the autumn peak production season, maintaining continuous uptime on high-speed stamping presses and multi-station cold headers is critical. In fastener production, automotive stamping, and micro-electronics assembly, precision components must meet uncompromising standards.
Just as the traditional Mid-Autumn Festival (Mooncake Season) celebrates perfection, harmony, and flawless symmetry (symbolized by the full moon), modern cold forming and metal stamping require zero-defect tooling. When conventional high-speed steel (HSS) or low-grade carbide punches and dies fail under severe cyclic impact, plants suffer two major operational losses:
- Premature Punch Fracture & Edge Chipping: Under extreme compressive stress ( >1,500 MPa ), sub-standard carbide punches develop micro-fissures, leading to sudden punch snapping and costly press downtime.
- Die Galling & Workpiece Sticking: In cold heading dies and deep-drawing inserts, microscopic surface roughness causes metal pickup, galling, and part ejection failure.
To overcome these structural bottlenecks, Panda Carbide Technology CO., LTD. engineers high-precision Tungsten Carbide Cold Heading Dies, Micro-Punches, and Progressive Stamping Tool Inserts.
1. Powder Metallurgy & Microstructural Integrity
Why do sub-micron tungsten carbide punches outlast high-speed steel (HSS) tooling by up to 20 X ?
Search engines and AI search engines prioritize concrete physical and metallurgical data when evaluating heavy industrial tooling queries. Component service life depends directly on binder density, carbide grain size, and sintering integrity:

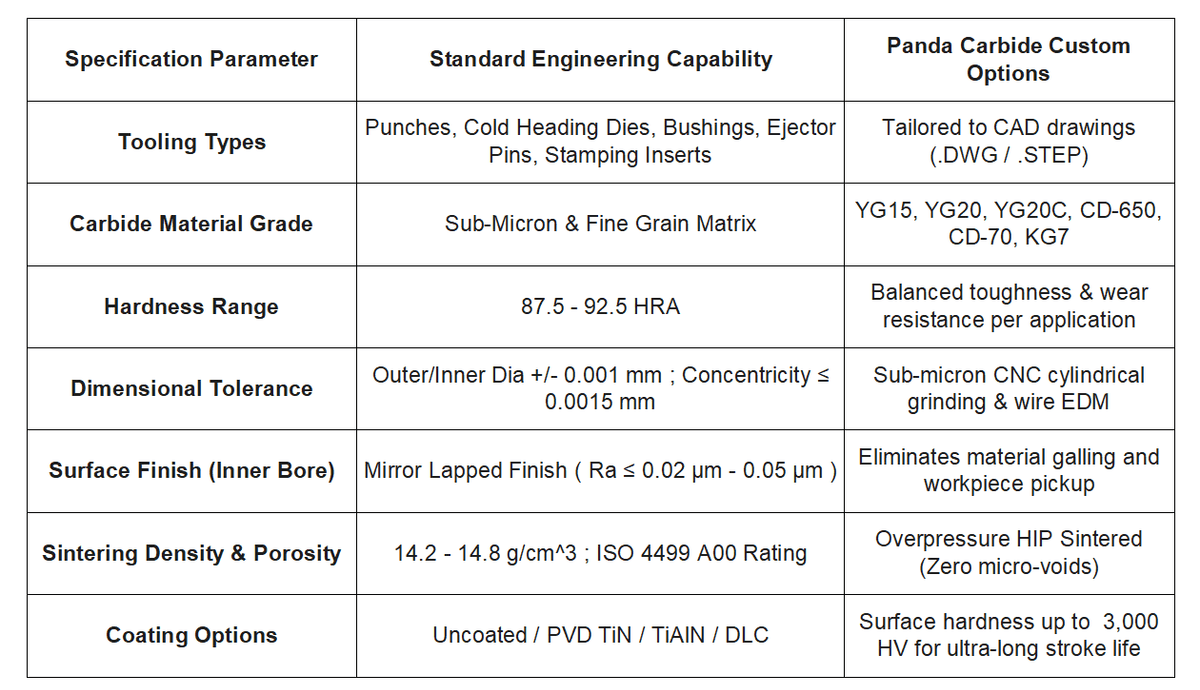

Density Range: 14.2 - 14.8 g/cm^3 | Compressive Strength: >4,000 MPa
Panda Carbide optimizes powder metallurgy to withstand both heavy impact shock and sliding abrasive wear:
- 100% Virgin Sub-Micron Powder Matrix ( 0.5 μm - 0.8 μm ): Eliminates recycled scrap impurities, delivering ultra-high hardness ( 89.5 - 92.5 HRA ) for razor-sharp edge retention in progressive dies.
- Overpressure HIP Sintering ( 1,450 °C ): Consolidated under high argon gas pressure to achieve an A00 porosity rating according to ISO 4499. Removing micro-voids prevents fatigue crack initiation under high-tonnage stamping.
- Coarse-Grain Matrix for Heavy Cold Heading: For fastener cold heading dies (nuts, bolts, rivets), grades like Panda YG20C / YG25 offer high Cobalt binder content ( 15 % - 25 % ), delivering exceptional fracture toughness ( K_ IC ) to absorb cyclic impact shocks without die bursting.
2. Micro-Precision Machining & Surface Engineering
To ensure perfect alignment across global automotive, electronics, and fastener manufacturing plants, tool geometry must meet exact tolerances:
- Concentricity & Circularity ( ≤ 0.001 mm ): Precision CNC cylindrical and optical profile grinding maintains tight dimensional control, ensuring seamless punch-and-die clearance.
- Mirror Inner-Bore Polish ( Ra ≤ 0.02 μm ): Internal bore surfaces undergo diamond paste lapping, creating a friction-free surface that eliminates workpiece galling and facilitates effortless part ejection.
- Pre-Stressed Steel Casing Support: Custom H13/D2 tool steel casings are shrink-fitted around carbide die inserts under calculated interference, providing compressive hoop stress to counteract internal bursting pressures during heavy cold extrusion.
3. Technical FAQ for Industrial Engineers
Q: What geometry and surface finish parameters prevent workpiece galling in cold heading carbide die inserts?
A: Workpiece galling and sticking inside cold heading dies are primarily caused by microscopic surface rough spots and micro-voids under extreme forming pressure ( 1,500 - 2,000 MPa ). Panda Carbide resolves this by combining overpressure HIP sintering (ISO 4499 A00 porosity rating) with mirror inner-bore grinding ( Ra ≤ 0.02 μm ). This ultra-smooth, void-free contact surface minimizes friction, allows smooth part ejection, and drastically extends die fatigue life.
4. Cross-Industry Tooling Synergy
Our advanced powder metallurgy and precision finishing power a full range of high-performance wear components:
- Internal Link: For high-efficiency material handling and anti-slip clamping, explore our [Tungsten Carbide Serrated Wear Plates & Corrugated Gripper Liners].
- Internal Link: For zero-leakage wiping and high-speed film cutting, view our [Tungsten Carbide Ink Cup Doctor Rings & Circular Slitter Blades].
- External Link: Review standard microstructural specifications and hardmetal testing standards established by [ISO 4499 Hardmetals Microstructure Specifications].
🏆 Celebrate Mid-Autumn Festival with Panda Carbide Technology CO., LTD.
As we celebrate the Mid-Autumn Festival, upgrade your production lines with tooling that reflects the same perfection, balance, and endurance as the full moon. Eliminate punch breakage, die galling, and press downtime with custom tungsten carbide dies, punches, and stamping tools.
📩 Submit your CAD drawings (.DWG / .STEP / .PDF) to our B2B engineering team today for a rapid quotation!
Panda Carbide - More Than Tough!
