In high-volume paper conversion and packaging operations—ranging from high-speed tobacco filter rod processing to continuous spiral paper tube spinning and eco-friendly paper straw manufacturing—the slitting station dictates the efficiency of the entire production line. As machinery velocities escalate, standard tool steel circular blades blunt rapidly due to the highly abrasive nature of paper mineral fillers (such as calcium carbonate). This rapid dulling introduces catastrophic converting defects: ragged edges, diameter deformation, and extensive airborne paper dust that fouls optical sensors.
To maintain continuous runtime, global manufacturing groups are upgrading to Ultra-Thin Tungsten Carbide Slitting Circular Knives. However, reducing blade thickness historically meant risking lateral blade deflection (wobbling) or premature shattering. At Panda Carbide Technology, we solve this structural bottleneck via specialized near-net pressing and advanced consolidation physics, delivering thin-profile circular tools with unmatched mechanical toughness.
1. The Single-Sintering Solution: Engineering Elastic Toughness into Thin Profiles
Why do Panda Carbide’s single-sintered ultra-thin circular knives resist chipping and warping better than conventional multi-heated carbide blades?
The structural reliability of our ultra-thin paper slitting blades stems from a proprietary metallurgical breakthrough: One-Step Single-Sintering HIP (Hot Isostatic Pressing) Technology.
In conventional manufacturing, thin blades often undergo multi-stage heating cycles or intensive secondary sintering to achieve final shapes. This prolonged heat exposure leads to localized tungsten carbide grain growth, creating microscopic boundaries of brittleness.
Panda Carbide compresses the sub-micron powder matrix into near-net shapes using advanced hydraulic compaction tooling. The blade preform then undergoes fully dense consolidation in a single, continuous overpressure heating cycle. This preserves a highly homogeneous sub-micron grain structure, boosting the material’s Transverse Rupture Strength (TRS). The resulting ultra-thin blade behaves elastically under high-speed cyclic shearing stress—providing high impact toughness and guaranteeing zero lateral wobble or warping down to thicknesses of 0.2 mm.
2. Cross-Industry Micro-Slitting Applications
A thin slitting profile means less material displacement during the cut. This mathematical advantage is vital across highly specialized B2B converting sectors:
Tobacco & Cigarette Manufacturing
In automated filter rod makers, circular knives must slice through dense acetate tow and tipping papers thousands of times per minute. Our ultra-thin knives execute these cuts with zero filter-tip deformation, securing a flawless cylindrical profile.
Spiral Paper Tube & Core Winding
Spinning structural paper cores for shipping liners requires cutting through heavy-duty, multi-layer adhesives. Panda Carbide’s rigid, thin-edge profile reduces frictional drag, preventing adhesive gumming and ensuring clean, burr-free perpendicular end cuts.
Food-Grade Paper Straw Production
Cutting small-diameter paper tubes requires a razor-sharp, low-friction blade. Our sub-micron thin circular wheels slice cleanly through multi-ply configurations without crushing the delicate hollow tube walls.
3. Technical FAQ: Eliminating Paper Dust and Optimizing Tolerances
Q: How does a thinner circular knife profile contribute to paper dust reduction?
A: A thicker blade acts like a wedge, tearing paper fibers apart via compression rather than shearing them. This tearing action generates massive amounts of airborne dust. By utilizing our unique pressing technology to reduce blade thickness while maintaining a mirror-polished flank finish of Ra ≤ 0.02 μm, the knife cleanly shears the web matrix. This micro-smooth edge interaction reduces paper dust accumulation by up to 90 % , keeping your automated production floor cleaner and safer.

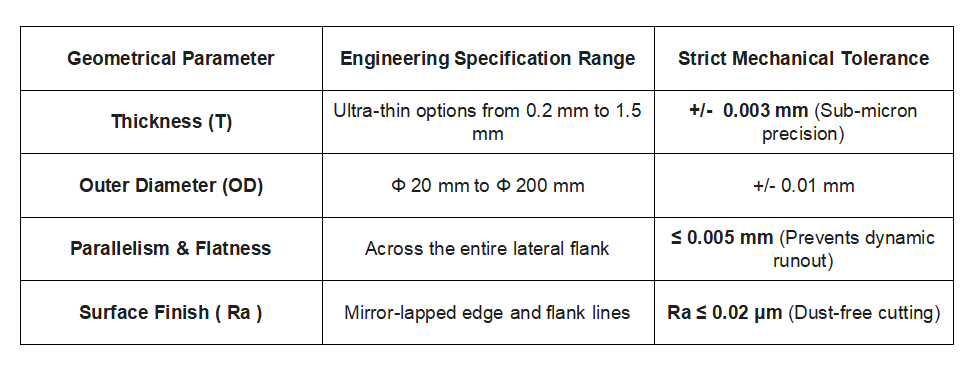

Q: What are the typical geometrical tolerances achieved for custom OEM paper slitting wheels?
A: To eliminate high-speed dynamic runout, all custom orders are ground on automated CNC centers to strict standards:
- Thickness Tolerance: Down to +/- 0.003 mm for ultra-thin profiles.
- Parallelism & Flatness: Held under ≤ 0.005 mm across the entire lateral cutting flank to ensure perfectly stable rotational tracking.
4. Dynamic Tooling Synergy and High-Wear Component Portfolios
Our single-sintering powder expertise, micron-level thickness controls, and ultra-smooth lapping technologies also drive our comprehensive portfolio of high-wear industrial and conversion tooling:
- Internal Link: For operations managing large-scale dry-end corrugator units, explore our mirror-finished [Tungsten Carbide Slitter Knives for Corrugated Cardboard].
- Internal Link: For flexible web finishing setups demanding complementary shear systems, view our robust [Rewinder Slitting Knives & Bottom Anvil Blades].
- External Link: [Review the international ASTM guide for evaluating and managing slitting dust and web trim aesthetics in high-speed commercial paper converting environments.]
🏆 Elevate Sourcing Precision with Panda Carbide Technology
Maximize your automated paper conversion lines with tooling that combines sub-micron density and precision engineering. By utilizing 100% virgin raw materials, advanced single-sintering HIP processing, and expert custom grinding, Panda Carbide Technology delivers thin-profile circular knives that eliminate edge defects and keep your high-speed operations running smoothly.
📩 Contact our B2B engineering desk today to submit your mechanical drawings for a rapid prototype quote!
Panda Carbide - More Than Tough!
Circular Slitting Tooling Specialist | Panda Carbide Technology CO., LTD.
