In global high-pressure fluid control systems—spanning oilfield downhole exploration (API sucker rod pumps), subsea chemical injection, high-pressure hydraulic check valves, precision metrology, and tube burnishing—maintaining dynamic spherical seal integrity is critical.
When downhole check valves, chemical metering pumps, or high-pressure hydraulic block valves encounter aggressive acids ( H_2S, CO_2 ), abrasive frac sand, or severe hydraulic shock (water hammer), traditional valve spheres fail through three destructive mechanisms:
- Chemical Binder Leaching: Acidic brine and sour gas dissolve cobalt matrix binders, leaving a porous surface that crumbles under pressure.
- Dynamic Washout & Cavitation: Micro-variations in ball sphericity allow high-velocity fluid jets to bypass the seat, eroding seal surfaces and causing total pressure loss.
- Internal Micro-Void Bursting: Porosity in lower-grade carbide spheres leads to internal stress concentration, causing ball fracture under high-pressure impact ( >50 MPa ).
To solve these fluid containment and wear failures, Panda Carbide Technology CO., LTD. engineers Precision Tungsten Carbide Balls, Valve Spheres, and Burnishing Balls built for extreme reliability.
1. Metallurgy of Sour Gas Corrosion: Nickel vs. Cobalt Binders
Why are nickel-binder tungsten carbide balls (YN6/YN8) preferred over cobalt-binder balls in oilfield downhole valves?
The operational lifespan of a downhole check valve ball depends on selecting the optimal binder phase.

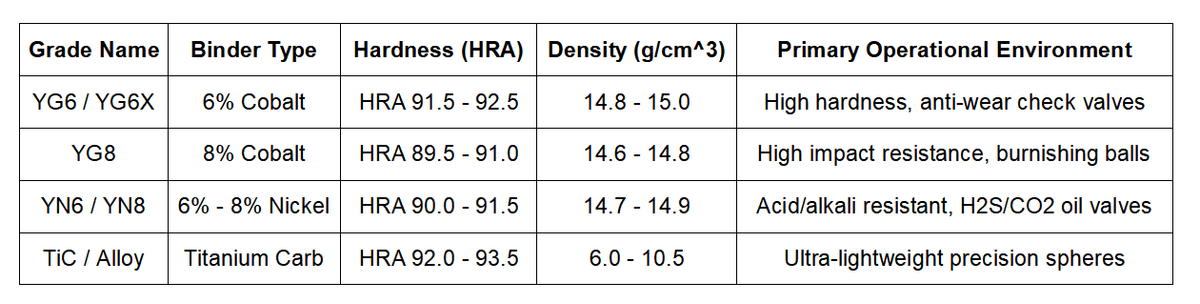

Panda Carbide optimizes sphere metallurgy according to operating media:
- Nickel Binder Matrix (YN6 / YN8 / YN10): In oilfield downhole environments containing sour gas ( H_2S ), carbon dioxide ( CO_2 ), and brine, Cobalt binders undergo rapid chemical leaching. Nickel binders form a passive protective film, preserving grain boundaries and extending valve ball operational life by up to 300 %.
- Cobalt Binder Matrix (YG6 / YG8 / YG11): For non-corrosive heavy abrasive slurry, crude oil pumping, and tube burnishing, Cobalt binders deliver maximum fracture toughness and hardness ( HRA 89.5 - 92.5 ).
- Overpressure HIP Sintering ( 1450 °C ): Processed in high-pressure argon sintering furnaces to eliminate micro-voids (ISO 4499 A00 rating), preventing hydraulic shock spikes from fracturing the sphere.
2. Sub-Micron Sphericity & Zero-Leakage Sealing
In high-pressure check valves and CMM metrology probes, spherical deviation directly dictates dynamic seal tightness and measurement accuracy.

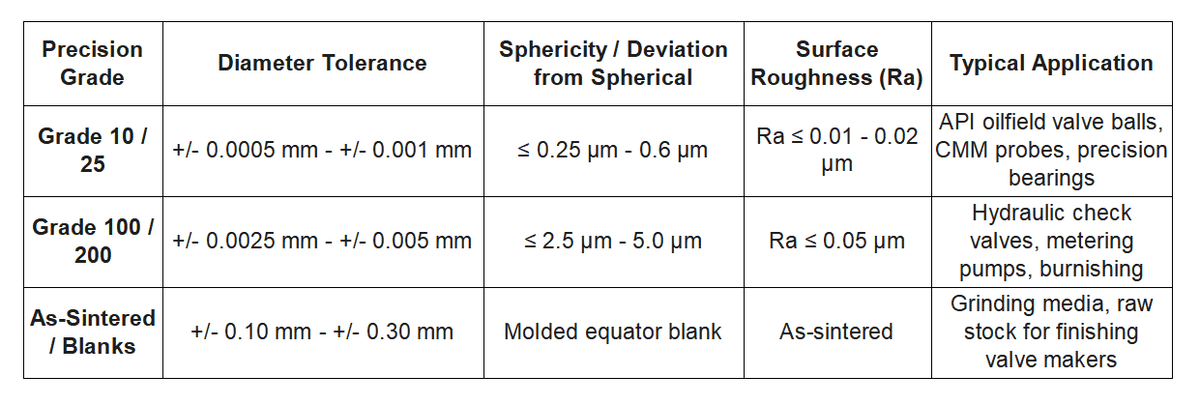

Panda Carbide enforces rigorous optical and mechanical quality controls across all precision spheres:
- Ultra-Precision Sphericity (Grade 10): Precision diamond lapping controls spherical deviation strictly within ≤ 0.25 μm, preventing fluid channeling and dynamic pressure drop.
- Mirror Surface Roughness ( Ra ≤ 0.01 μm ): Super-finished sphere surfaces eliminate friction-induced wear on mating tungsten carbide seats.
- Precision Ball & Seat Matched Pairs: Valve balls are optically lapped together with matching carbide seats, guaranteeing vacuum-tight zero-leakage performance under extreme pressures.
3. Technical FAQ: Downhole API Compatibility & Applications
Q: Does Panda Carbide supply API standard tungsten carbide valve balls and seat pairs for oilfield sucker rod pumps?
A: Yes. Panda Carbide manufactures standard API specification valve balls and paired seat sets (including 1-1/8", 1-1/4", 1-1/2", and 1-3/4" sizes) in high-density Cobalt (YG6/YG8) and corrosion-resistant Nickel (YN6/YN8) grades. Our valve balls meet strict API Spec 11AX dimensional and sphericity standards for high-reliability downhole artificial lift systems.
4. Cross-Industry Tooling Synergy & Global Supply Chain Integration
Our overpressure HIP sintering capabilities, sub-micron diamond polishing, and corrosion-resistant metallurgy power our complete portfolio of wear components and raw stock:
- Internal Link: For rotary cutting tool fabrication and EDM die making, explore our [Solid Tungsten Carbide Rods, Bars, Plates, Strips & Custom Blanks].
- Internal Link: For dynamic zero-leakage pump shaft containment, view our [Precision Tungsten Carbide Wear Rings & Mechanical Seal Rings].
- External Link: *[Review the standard specification for sucker rods, pumps, and downhole fittings established by the American Petroleum Institute (API Spec 11AX).] *
🏆 Partner with Panda Carbide Technology CO., LTD.
Secure your downhole oil pumps, high-pressure check valves, and precision metrology instruments with tungsten carbide balls and spheres engineered for extreme pressure, corrosion resistance, and sub-micron sphericity. By combining $100\%$ virgin powder metallurgy with overpressure HIP sintering and Grade 10 precision finishing, Panda Carbide Technology CO., LTD. delivers the fluid containment reliability required by global processing industries.
📩 Submit your target ball diameter, precision grade, or CAD technical drawings to our B2B engineering team today for a rapid quote!
