In global high-pressure fluid handling and material processing systems—spanning lithium battery precursor spray drying, polymer extrusion die heads, high-pressure homogenizers, and oilfield mud circulation—maintaining precise fluid channel geometry under aggressive abrasive flow is essential.
When high-velocity slurries, glass-filled molten polymers, or corrosive fluids pass through spray tips, distribution cones, or homogenizer valves at extreme pressures ( 10 - 100 MPa ), standard metallic and low-grade carbide nozzles fail through three primary degradation mechanisms:
- Particle Impingement Wear: High-speed solid particles (such as battery cathode precursors or glass fibers) scour the internal bore, rounding flow edges and expanding nozzle orifices.
- Cavitation & Fluid Washout: Micro-porosity in lower-grade carbide stock causes localized fluid turbulence and cavitation erosion, leading to sudden wall breaches.
- Chemical Binder Dissolution: Acidic slurries or aggressive chemical carriers dissolve cobalt matrix binders, causing carbide grain pull-out and rapid structural breakdown.
To prevent premature equipment downtime and maintain precise flow control, Panda Carbide Technology CO., LTD. engineers Precision Tungsten Carbide Nozzles, Conical Extrusion Tips, and Liquid Distribution Cones built for maximum wear resistance.
1. Fluid Wear Kinetics: Sub-Micron Metallurgy & HIP Sintering
How does overpressure HIP sintering prevent bore erosion in carbide spray drying nozzles?
The service life of a high-pressure spray nozzle depends directly on substrate density and grain matrix uniformity.
Panda Carbide optimizes powder metallurgy and sintering processes for severe flow environments:
- Sub-Micron Grain Matrix ( 0.4 μm - 0.6 μm ): Reduces inter-granular binder spacing, preventing abrasive micro-particles from scouring out the binder phase and dislodging carbide grains.
- Overpressure HIP Sintering ( 1450 °C ): Processed under high argon gas pressure to achieve an A00 porosity rating (ISO 4499), eliminating micro-voids that trigger cavitation pitting.

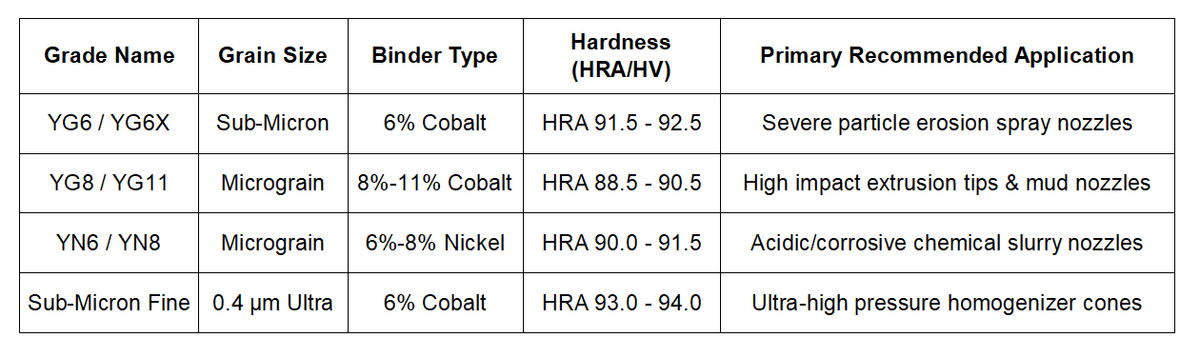

- Corrosion-Proof Binder Matrices: Available in high-hardness Cobalt (YG6X/YG8) for abrasive slurries, or Nickel binders (YN6/YN8) for corrosive acidic chemical spraying.

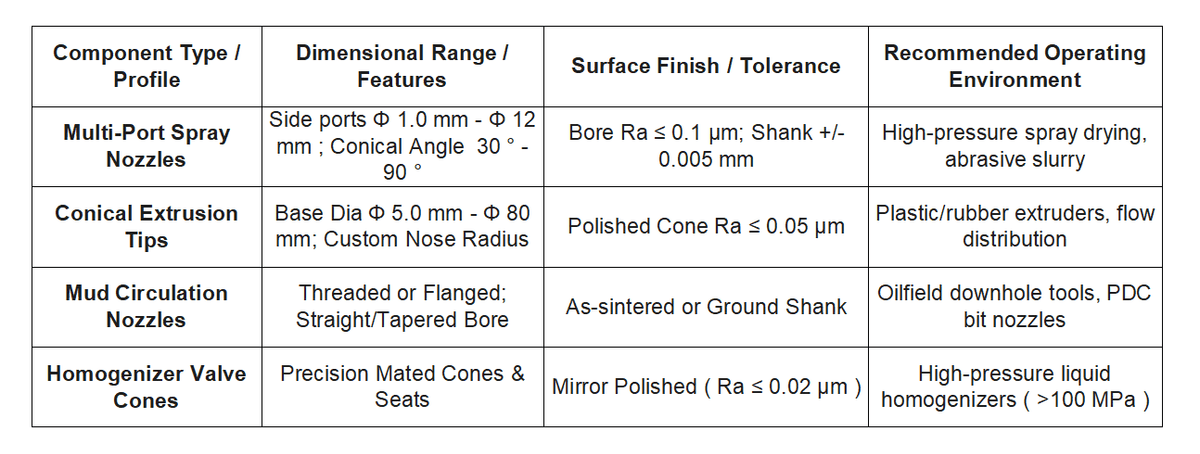

2. Precision Flow Geometry & Multi-Axis Machining
To maintain constant spray angles, uniform droplet atomization, and balanced polymer melt velocity across global manufacturing plants, internal fluid channels must adhere to ultra-tight geometric tolerances.
Panda Carbide applies advanced finishing techniques across all custom nozzle profiles:
- Mirror-Polished Internal Channels ( Ra ≤ 0.05 μm ): Super-finished internal bores reduce boundary layer friction, preventing material buildup and premature clogging.
- Multi-Port CNC & EDM Drilling: Side discharge ports and angled distribution holes are machined with high concentricity ( +/- 0.005 mm ) to ensure symmetrical fluid distribution.
- Conical Extrusion Tip Precision: High-precision nose radii and polished conical faces maintain balanced pressure drops in plastic and rubber extrusion die heads.
3. Technical FAQ: Industry Applications & Selection
Q: Why are carbide distribution cones preferred over hardened tool steel in twin-screw polymer extruders?
A: Polymer melts containing abrasive fillers (such as 30 % - 50 % glass fiber or mineral powder) exert severe sliding abrasion on flow-dividing components. Hardened tool steel cones suffer rapid grooving and dimensional loss, causing uneven melt distribution and extrusion flow instability. Sub-micron tungsten carbide distribution cones ( HRA ≥ 92.5 ) provide up to 500 % longer operational life, maintaining uniform polymer flow and preventing melt fracture.
4. Cross-Industry Tooling Synergy & Global Supply Chain Integration
Our overpressure HIP sintering expertise, sub-micron powder metallurgy, and ultra-precision finishing power our entire range of industrial carbide products:
- Internal Link: For precision substrate stock and raw tool blanks, view our [Solid Tungsten Carbide Rods, Bars, Plates, Strips & Custom Blanks].
- Internal Link: For zero-leakage fluid containment in chemical pumps, explore our [Precision Tungsten Carbide Wear Rings & Mechanical Seal Rings].
- External Link: *[Review the standard test methods for erosion resistance and microstructural evaluation of cemented carbides established by ASTM International (ASTM G76 / ISO 4499).] *
🏆 Partner with Panda Carbide Technology CO., LTD.
Eliminate output drops, frequent nozzle replacements, and flow channel erosion in your production lines. Upgrade your spray dryers, extruders, and high-pressure fluid systems with custom tungsten carbide nozzles and distribution cones engineered for extreme wear resistance. By combining 100 % virgin sub-micron powders with overpressure HIP sintering, Panda Carbide Technology CO., LTD. delivers the material reliability required by global processing industries.
📩 Submit your target nozzle dimensions, fluid media specs, or CAD drawings to our engineering team today for a rapid B2B quotation!
