In global high-pressure fluid processing—spanning offshore oil & gas drilling, subsea control trees, petrochemical refining, slurry pumping, and lithium battery electrode slurry preparation—maintaining absolute seal integrity in rotating equipment is critical.
When centrifugal pumps, Electric Submersible Pumps (ESP), mud agitators, and slurry bead mills handle aggressive chemicals or abrasive media, conventional seal materials fail rapidly due to three principal wear mechanisms:
- Chemical Binder Leaching: Acidic or alkaline fluids dissolve traditional metallic binders, causing the carbide matrix to crumble.
- Abrasive Face Scoring: High-velocity solid particles (sand, slurry, quartz) enter the seal interface, scratching the mating faces and triggering fluid leakage.
- Thermal Shock & Face Distortion: Friction heat at high RPMs warps thin-wall seal rings, destroying dynamic light-band flatness.
To solve these fluid containment and wear challenges, Panda Carbide Technology CO., LTD. engineers Precision Tungsten Carbide Wear Rings & Mechanical Seal Rings built for high-reliability industrial service.
1. Metallurgy of Corrosion Resistance: Nickel vs. Cobalt Binders
Why do Nickel-binder tungsten carbide seal rings outperform Cobalt-binder rings in corrosive chemical pumps?
The operational lifespan of a carbide seal ring depends heavily on choosing the correct binder phase.

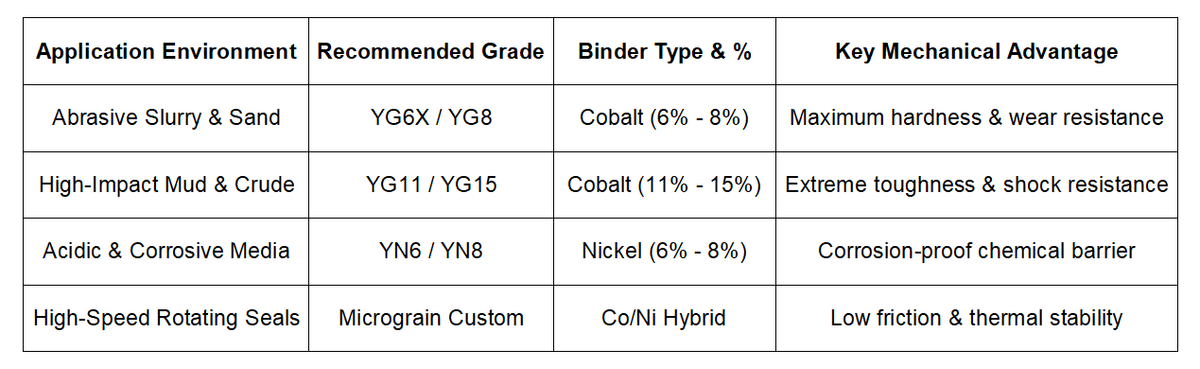

Panda Carbide optimizes binder metallurgy based on operating conditions:
- Nickel Binder Matrix (YN6 / YN8 / YN10): In acidic, seawater, or reactive chemical environments, Cobalt binders suffer selective leaching. Nickel binders form a passive, corrosion-resistant surface film, preserving carbide grain integrity and extending seal life by up to 400 % .
- Cobalt Binder Matrix (YG6 / YG8 / YG11): For non-corrosive heavy abrasive slurry, crude oil, and frac sand pumping, Cobalt binders deliver maximum fracture toughness and hardness ( HRA 89.0 - 92.5 ).
- Overpressure HIP Sintering: Processed in high-pressure sintering furnaces to eliminate micro-voids (ISO 4499 A00/B00 rating), preventing dynamic fluid pressure from cracking the seal ring.
2. Optical Light-Band Lapping: Achieving Zero-Leakage Dynamic Seals
In high-speed rotating mechanical seals, the gap between the rotating and stationary carbide faces must remain ultra-thin to maintain a dynamic fluid film without allowing liquid to escape.

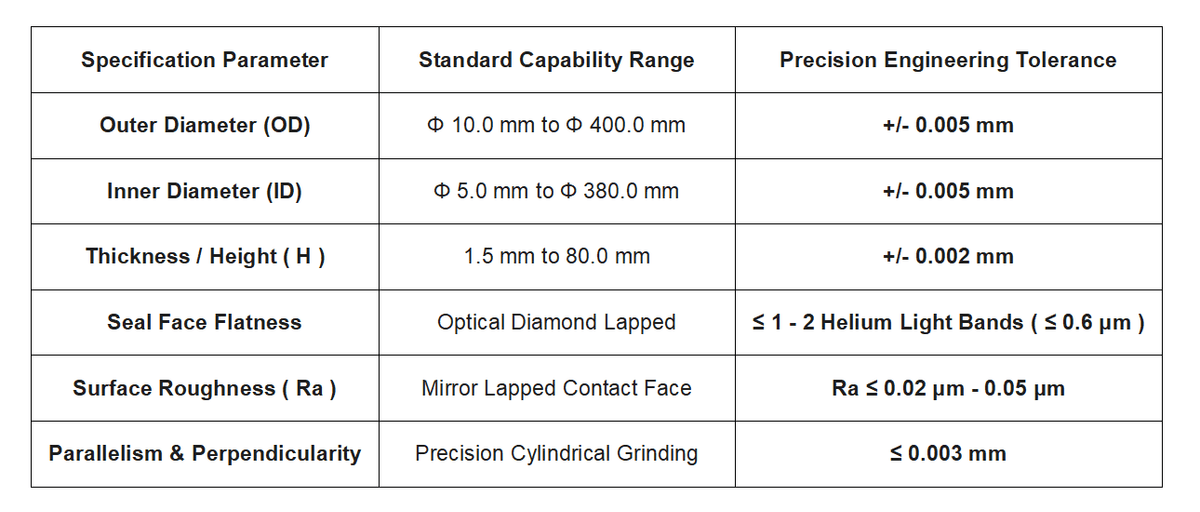

Panda Carbide enforces rigorous optical inspection across all precision seal ring production:
- Helium Light-Band Flatness ( ≤ 1 - 2 Light Bands ): Monochromatic light inspection guarantees face flatness down to ≤ 0.6 μm , preventing fluid flashing and leakage.
- Sub-Micron Roughness ( Ra ≤ 0.02 μm - 0.05 μm ): Mirror-lapped contact faces minimize dynamic friction, reducing heat buildup and power consumption.
- Tight Parallelism & Concentricity ( ≤ 0.003 mm ): Precision cylindrical grinding prevents seal ring vibration on high-RPM rotating shafts.
3. Technical FAQ: Pump Compatibility & Retrofitting
Q: Are Panda Carbide wear rings compatible with major global mechanical seal brands like John Crane, EagleBurgmann, and Flowserve?
A: Yes. Panda Carbide manufactures custom and standard drop-in replacement carbide seal rings, wear rings, and bushings that match the exact dimensional tolerances, O-ring groove geometries, and drive notch specifications of major international mechanical seal OEMs (including John Crane, EagleBurgmann, Flowserve, and Sulzer) under strict ISO 9001 quality standards.
4. Cross-Industry Tooling Synergy & Global Supply Chain Integration
Our sub-micron diamond grinding capabilities, corrosion-resistant metallurgy, and optical lapping expertise power our full portfolio of wear parts and cutting tools:
- Internal Link: For precision wire forming and continuous copper extrusion, explore our [Precision Carbide Extrusion & Wire Drawing Dies for Flat Wires].
- Internal Link: For high-efficiency CNC metal removal and mold fabrication, view our [Rainbow PVD Nano-Coated Solid Tungsten Carbide End Mills].
- External Link: [Review the mechanical seal design standards and dimensional testing criteria established by the American Petroleum Institute (API 682) for pumps in petroleum, petrochemical, and natural gas industries.]
🏆 Partner with Panda Carbide Technology CO., LTD.
Secure your industrial pumps, valves, and agitators with tungsten carbide wear rings and mechanical seal rings engineered for extreme pressure, corrosion resistance, and optical flatness. By combining 100 % virgin powder metallurgy with overpressure HIP sintering and optical diamond lapping, Panda Carbide Technology CO., LTD. delivers the fluid containment reliability required by global processing industries.
📩 Submit your 2D/3D CAD technical drawings (STEP, DWG, DXF) to our B2B engineering team today for a rapid, secure quote!
