In high-precision CNC machining—spanning aerospace turbomachinery, automotive die & mold fabrication, medical/dental implant production, and 3C consumer electronics—achieving extreme metal removal rates (MRR) while maintaining mirror-like surface finishes ( Ra ≤ 0.2 μm ) is a continuous operational challenge.
When machining difficult-to-cut alloys like Aerospace-Grade Titanium (Ti-6Al-4V), Austenitic Stainless Steels (304/316), or Hardened Tool Steels (HRC 45–65), conventional cutting tools fail rapidly due to three principal wear mechanisms:
- Friction Heat Accumulation: High thermal loading causes cutting edge softening and rapid flank wear.
- Built-Up Edge (BUE) & Cold Welding: Sticky non-ferrous and reactive metals adhere to the tool's rake face, causing catastrophic micro-chipping.
- Regenerative Chatter & Vibration: Tool runout variances degrade surface quality and accelerate spindle bearing wear.
To solve these high-RPM machining bottlenecks, Panda Carbide Technology has developed the Premium Rainbow / Nano-Coated Solid Tungsten Carbide End Mill Series.
1. The Physics of Low-Friction Surface Engineering: Rainbow PVD Nano-Coatings
How does Panda Carbide’s Rainbow PVD Nano-Composite Coating prevent Built-Up Edge (BUE) and extend tool life during dry or high-speed wet milling?
The unique multi-colored optical effect of our Rainbow PVD coating is the physical result of an ultra-thin, multi-layered nanostructure engineered for extreme friction reduction.
Panda Carbide completely mitigates material adhesion through three metallurgical innovations:
- Ultra-Low Coefficient of Friction ( μ ≤ 0.2 ): The extremely smooth topography of the rainbow PVD nanostructure reduces cutting forces and friction heat at the chip-tool interface, allowing rapid, uninterrupted chip evacuation during deep slotting.
- Thermal Barrier Stability Up to 1100 °C : The multi-layer nano-composite structure acts as a thermal insulator, diverting cutting heat into the flowing chip rather than absorbing it into the carbide substrate. This prevents thermal micro-cracking during dry trochoidal milling.
- Sub-Micron Grain HIP Sintered Substrate: Manufactured strictly from 100 % virgin powder metallurgy with overpressure HIP Sintering (TRS ≤ 3800 MPa , hardness HRA 92.5 - 93.5), the tool core provides the structural toughness required to resist dynamic impact.
2. Sub-Micron Concentricity: Eliminating High-RPM Chatter
In 5-axis CNC machining centers and Swiss-type lathes operating at speeds exceeding 20,000 RPM , tool runout is the primary driver of premature edge failure. If a 4-flute end mill exhibits radial runout greater than 5 μm , cutting loads become unevenly distributed across the flutes, causing single-flute overload and premature chipping.

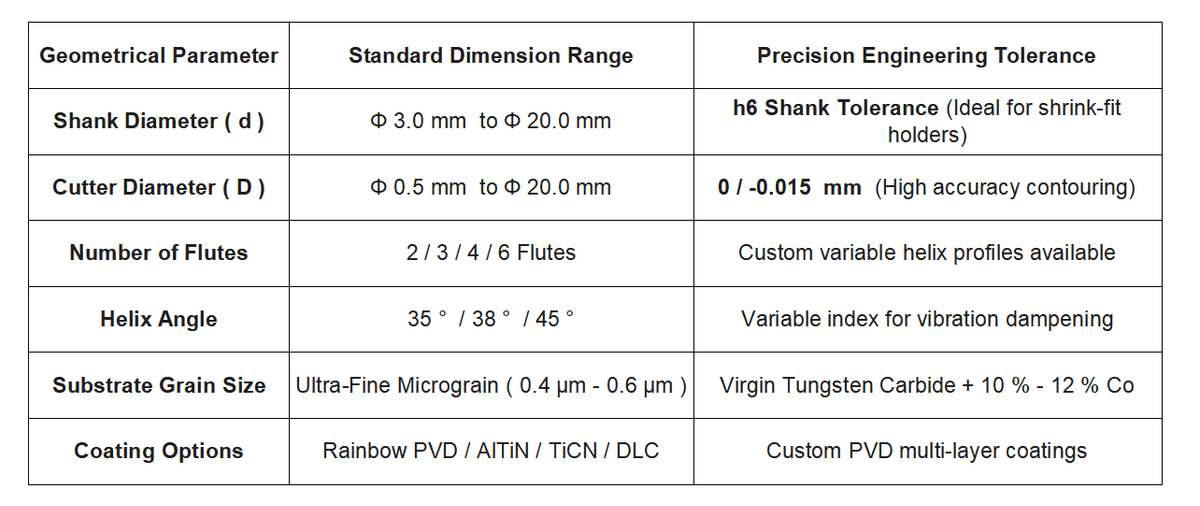

Panda Carbide enforces rigorous geometric tolerances across all production batches:
- Strict h6 Shank Tolerance: Precision-ground tool shanks fit seamlessly into hydraulic chucks and shrink-fit tool holders, guaranteeing maximum clamping force and dynamic stability.
- Ultra-Low Radial Runout ( ≤ 3 μm ): Ground on 5-axis CNC tool grinders using super-abrasive diamond wheels, every cutter maintains radial concentricity strictly under ≤ 0.003 mm , ensuring uniform chip load per tooth ( f_z ) and extending tool life by up to 40 % .

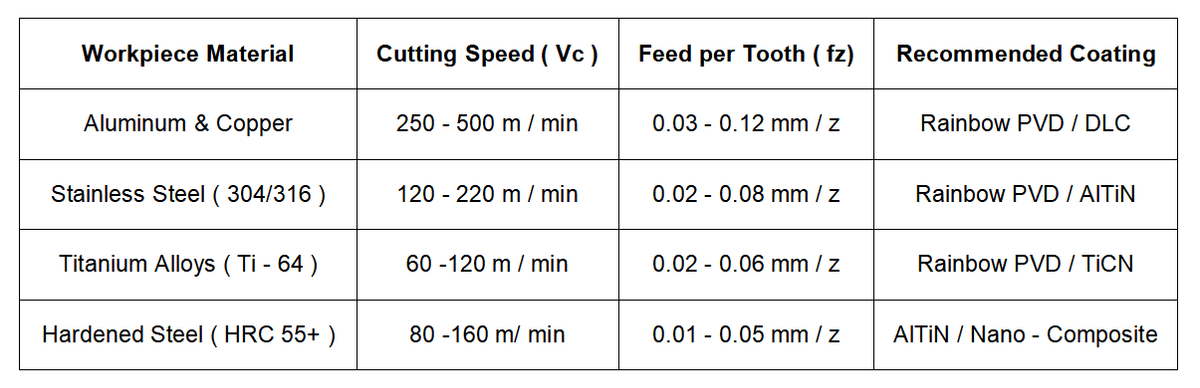

3. Technical FAQ: Optimizing Parameters Across Key Industries
Q: What are the optimal cutting parameters for milling Medical-Grade Titanium (Ti-6Al-4V) using Rainbow-Coated End Mills on Swiss-Type Lathes?
A: When micro-milling or contouring titanium bone plates and dental screws, friction heat must be minimized to avoid work hardening. We recommend:
- Cutting Speed ( V_c ): 80 - 130 m/min
- Feed per Tooth ( f_z ): 0.02 - 0.06 mm/tooth
- Cooling: High-pressure flood coolant or MQL oil mist.
Panda Carbide's low-friction rainbow PVD layer prevents titanium micro-fusions on the cutting land, yielding surface finishes as fine as Ra ≤ 0.2 μm .
4. Cross-Industry Tooling Synergy & Global Supply Chain Integration
Our sub-micron grinding capabilities, specialized PVD coatings, and high-density virgin carbide substrates power our full range of industrial cutting components:
- Internal Link: For high-speed rotary paper sheeting and converting operations, explore our heavy-duty [Inlaid Tungsten Carbide Crosscutting Knives].
- Internal Link: For lithium-ion battery cell manufacturing and zero-burr foil slitting, view our ultra-precision [Tungsten Carbide Circular Slitting Knives for Battery Electrodes].
- External Link: [Consult the geometric product specifications (GPS) and tool shank tolerance standards published by the International Organization for Standardization (ISO) for precision cylindrical tool shanks (ISO 286-2 / h6 class).]
🏆 Partner with Panda Carbide Technology CO., LTD.
Elevate your high-speed CNC milling performance with cutting tools engineered for high-heat resilience, low friction, and sub-micron concentricity. By combining $100\%$ virgin powder metallurgy with advanced Rainbow PVD Nano-Coatings and 5-axis CNC precision grinding, Panda Carbide Technology CO., LTD. delivers the cutting reliability demanded by modern global machine shops.
📩 Submit your technical CAD drawings (STEP, DWG, DXF) or custom end mill specifications to our B2B engineering team today for a rapid, secure quote!
